CAM SQUARED

M² Measurement & Laser Quality Testing

CAM SQUARED

M² Measurement & Laser Quality Testing

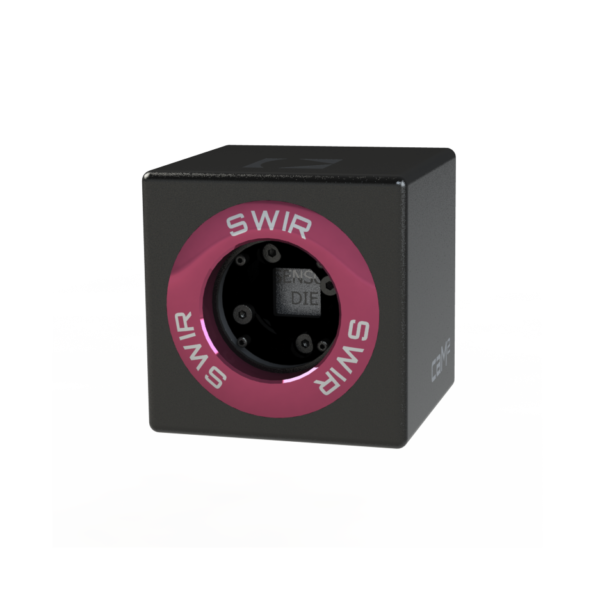

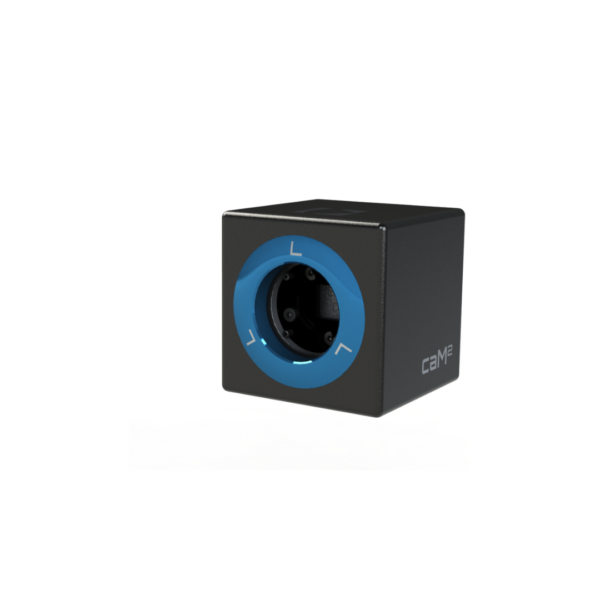

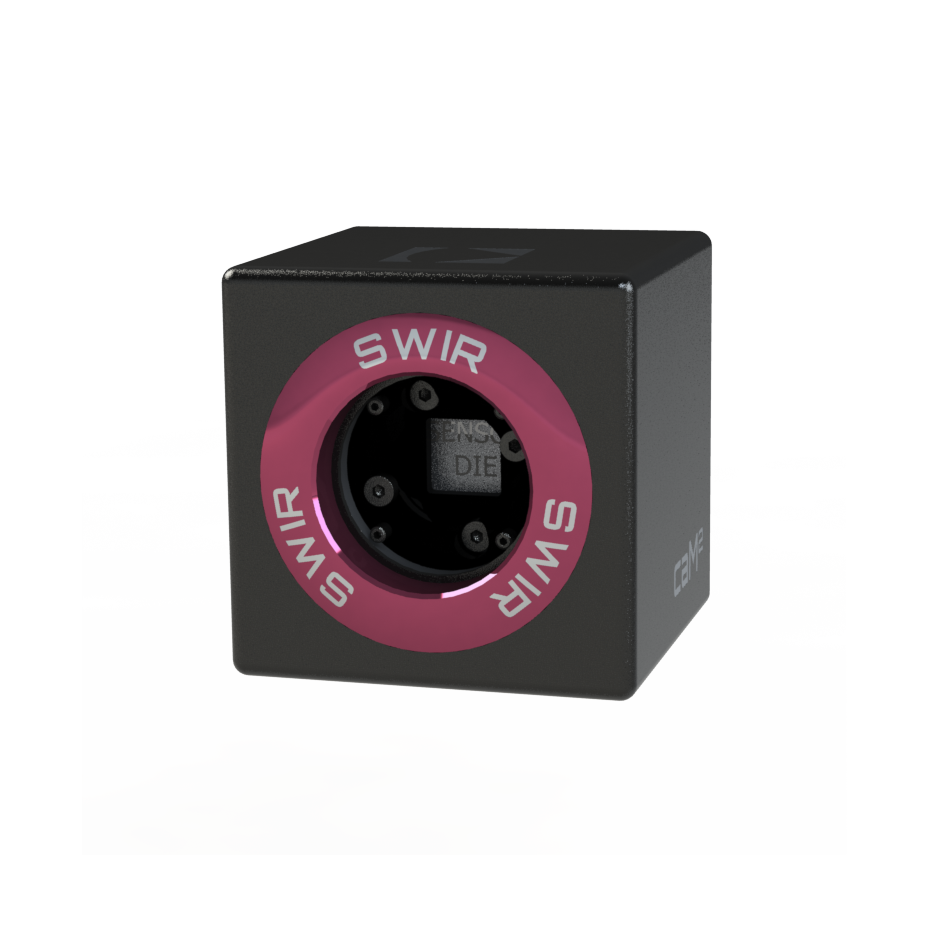

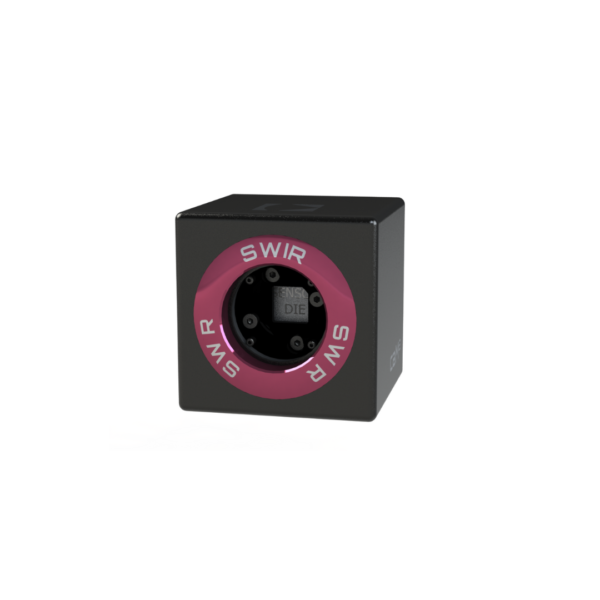

CAM SQUARED is Imagine Optic’s innovative answer to the need for laser quality testing and M² measurement in the lab or in production.

As easy and quick to set up as a beam profiler, CAM SQUARED gives access to the M squared factor in seconds instead of minutes!

CAM SQUARED

M2 measurement system “CAM SQUARED”, the latest product from Imagine Optic, offers precise and reliable analysis of laser beam quality with new records in M squared calculation speed and simplicity over other systems.

The standard ISO 11146 requires intensity distribution in at least 10 observation planes from which is computed the M squared factor. They are usually acquired using a camera moved along the optical axis. Imagine Optic proposes an innovative approach allowing the acquisition of the complete dataset needed in only one shot.




Best for: Easy & Quick laser quality testing



+ No need for translation stages
+ No need for alignment
+ No need for focusing optics that can compromise real M2 value



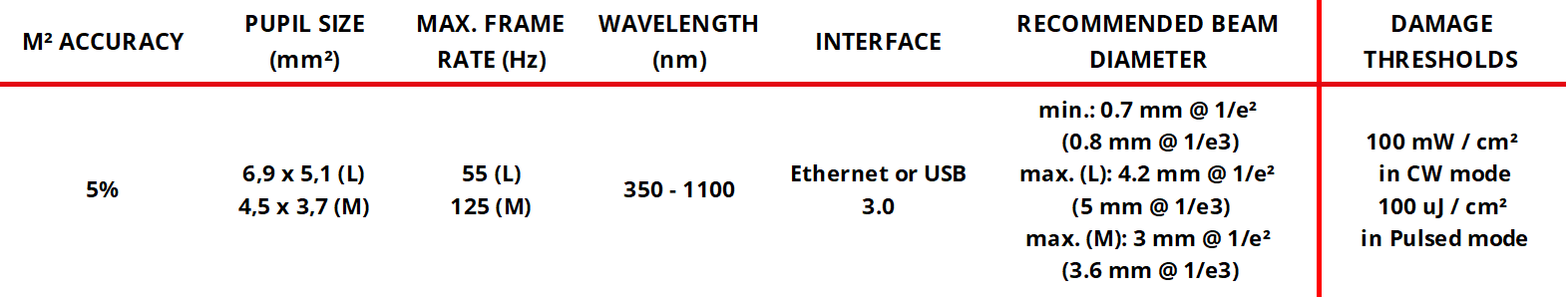

Features



CAM SQUARED performs multiple measurements:

+ M2
+ Divergence
+ Focus diameter
+ Waist position
+ Rayleigh length
+ Thermal effects
+ Astigmatism
+ Follow the reconstruction of the M2 factor from at least 10 observation planes as recommended in the Standard ISO10116.



Software dedicated for M2 measurement



The Application M2 corresponds to an optimized display of laser quality metrics based on WAVEVIEWTM long-proven optical metrology software. It provides an instant visualization of the M² factor and of the intensity map at any observation plane. One can access these values in only one shot

Option:

Full wavefront reconstruction for alignment, collimation and optimization based on full knowledge of the phase.



Accessories for M2 measurement system CAM SQUARED



Several mounting options are available:
+ Adaptors for the most common mechanical stages
+ Magnetically coupled top and bottom plates, allowing to mount, remove, and replace CAM SQUARED with a high repeatability



Introducing CAM SQUARED – the latest addition to Imagine Optic’s portfolio of cutting-edge products. But don’t just take our word for it – we invite you to check out the product datasheet and see for yourself what makes CAM SQUARED such a powerful and innovative solution. and if you’re still not convinced, we encourage you to read the application note, where we highlight the benefits that this system brought to Oxxius and how much M2 measurement became easy and fast .
