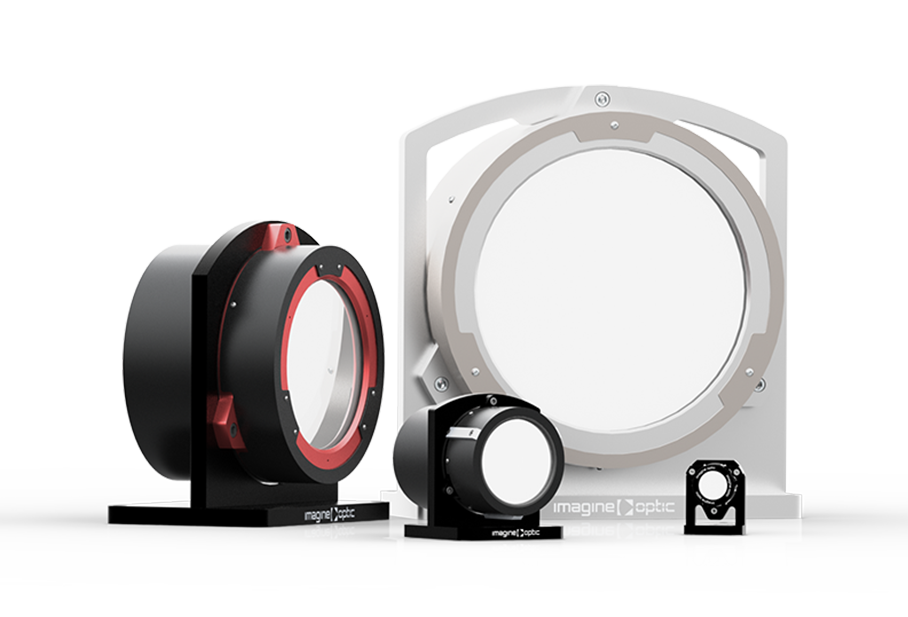

ILAO STAR

HASO MULTISPECTRAL

WAVETUNE

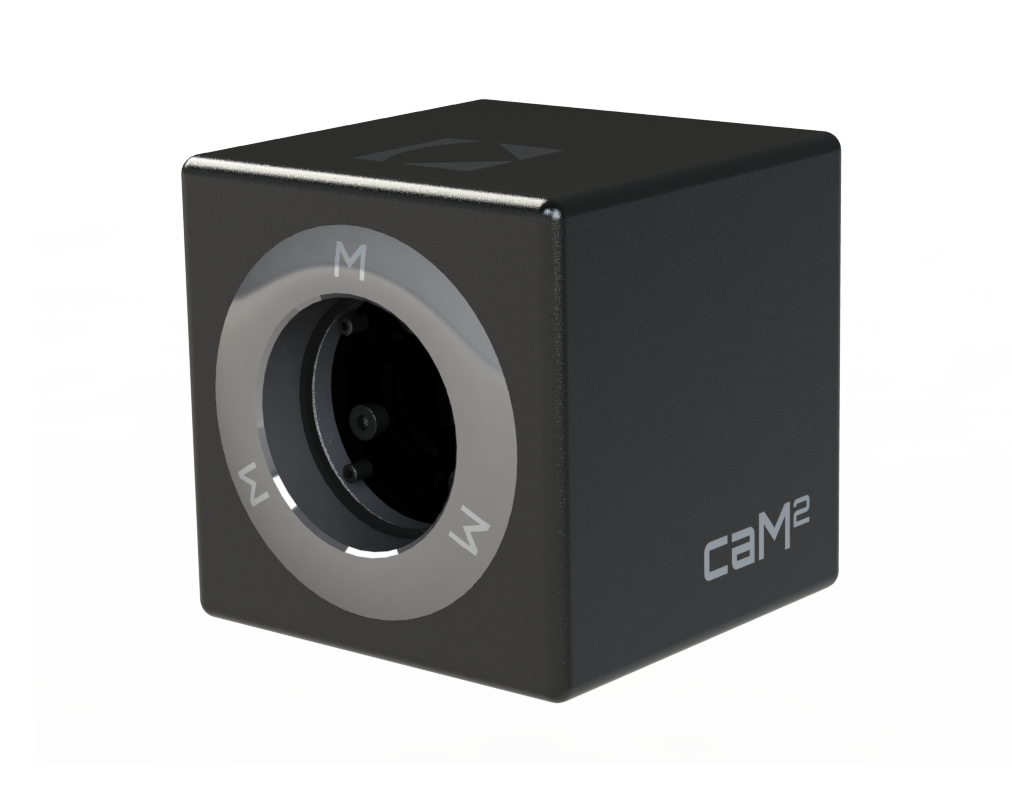

M2-measurement-CAM-SQUARED-L

CAM SQUARED

A tool designed for the specific needs of laser users and manufacturers

Lasers, used for many applications in scientific and industrial fields, are distinguished from other light sources by their coherence. Spatial coherence is typically expressed through the output being a narrow beam, which is diffraction-limited. Laser beams can be focused on tiny spots, thereby achieving a high irradiance, or they can have low divergence in order to concentrate their power at a great distance.

Many instruments have been developed to tune and characterize laser systems, but Shack-Hartmann wavefront sensors are among the most versatile of these in laser beam characterization . Indeed, Imagine Optic’s wavefront sensors characterize not only the laser beam’s intensity and phase but also its divergence, PSF, beam’s waist diameter and M2 parameter, all in a single measurement.
The combination of these sensors with the ILAO Star deformable mirrors and WaveTune software offers the ideal adaptive optics solution for achieving the ultimate focusing of ultra-fast or ultra-high intense lasers.





Applications

Laser beam characterization

AO for high-power laser

Laser alignment

Spatio-spectral coupling characterization

M Squared Measurement
