WAVEVIEW
Version 4.5 (March 2025)
As the latest version of our acclaimed optical metrology software for HASO wavefront sensors and the HASO R-FLEX2 metrology system, Waveview 4.4.2 features the following upgrades:
+ Compression of high-resolution measurement saved files for storage optimization
+ Enhanced GUI for user guidance (alert messages, contextual tips)
+ Improved robustness of phase reconstruction algorithms
+ Autonaming of saved files with user defined prefix for traceability of data
+ Updated calculation of parameters according to phase reconstruction mode
WAVEVIEW
Waveview is the acclaimed optical metrology software for HASO wavefront sensors, R-FLEX2 R-FLEX2 and Optical Engineer Companion metrology systems.
It features the proprietary SpotTracker technology which provides absolute wavefront and tilt information, eliminating alignment requirements.
KEY FEATURES FOR OPTICAL METROLOGY
– Zonal and modal wavefront reconstruction; Real-time wavefront and intensity map
– Full-pupil wavefront reconstruction even with random obstructions
– Tilt and focus monitoring
– Zero latency

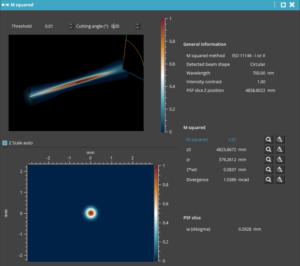

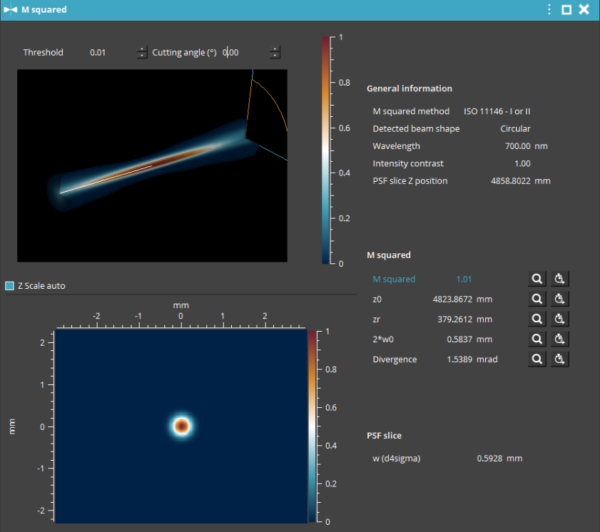

– ISO-based M-Squared measurements (3 standards)
– script mode
– acquisition up to 1Khz
SpotTracker: Auto-detect & auto-correct angle deviation
OPTIMIZED INTERFACE
– 1-click access to main functions
– Same-type actions in same location
– Context-based menus
– Multi-instance panel display to easily compare wavefronts
– Custom dashboards
Windows 11 Compatible
End of Windows 7 Support
Microsoft as discontinued support Windows 7 in Spring 2020. If you are experiencing troubles installing an older version of Waveview, please contact us to check if an update is available.
Latest Version Updates
New WAVEVIEW release v4.5:
+ ‘Mask editor’ interface window has been improved to better control the analysis pupil and subpupils (slopes) filtering
+ ‘Error’ log window has been improved
+ Link to our online Technical support has been added to connect easily the User Interface with our community, FAQ, and Tech support engineers
Options:
+ New ‘Advanced Zernike’ extension is available: allow to compute Zernike coefficients on elliptical and annular pupils
+ ‘M2’ extension has been improved: additional window added to easily adjust the collinearity of several laser beams, and to trace pointing stability over time
Hardware compatibility:
+ New wavefront sensors HASO SWIR FAST, LIFT LP and future HASO UV have been integrated to the user interface
WAVEKIT SDK:
+ Methods have been improved and added to simplify wavefront sensors integration and control
