HASO FIRST
Cost effective quality wavefront sensor
The HASO First wavefront sensor is a Shack Hartmann based on a camera on par with the best industrial standards in term of reliability, and it offers high wavefront measurement performance, factory calibration and advanced software capabilities. Check out the HASOs Table to see our full HASO and LIFT series: compare specs and choose what fits best your requirements!

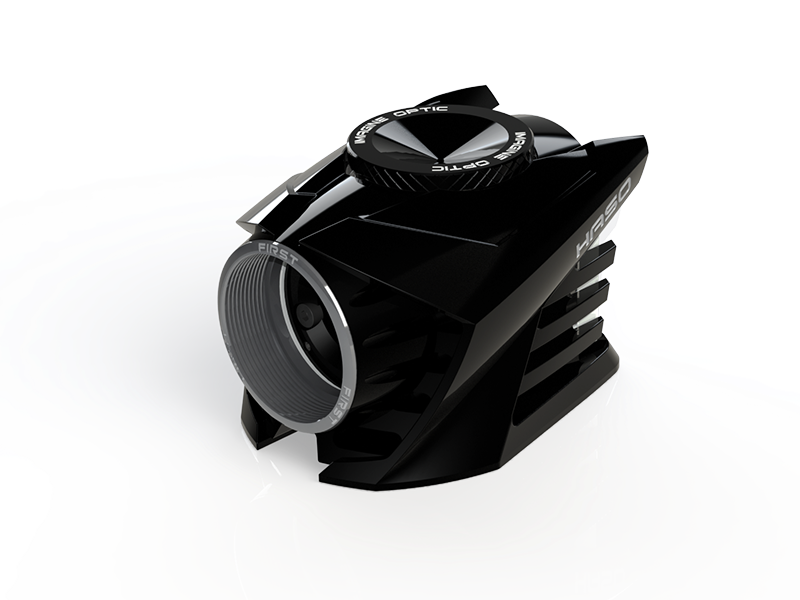

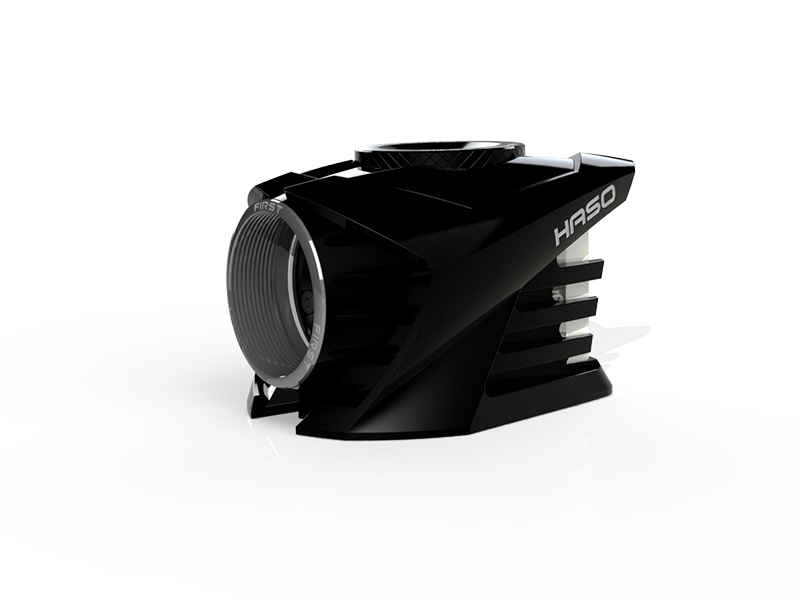

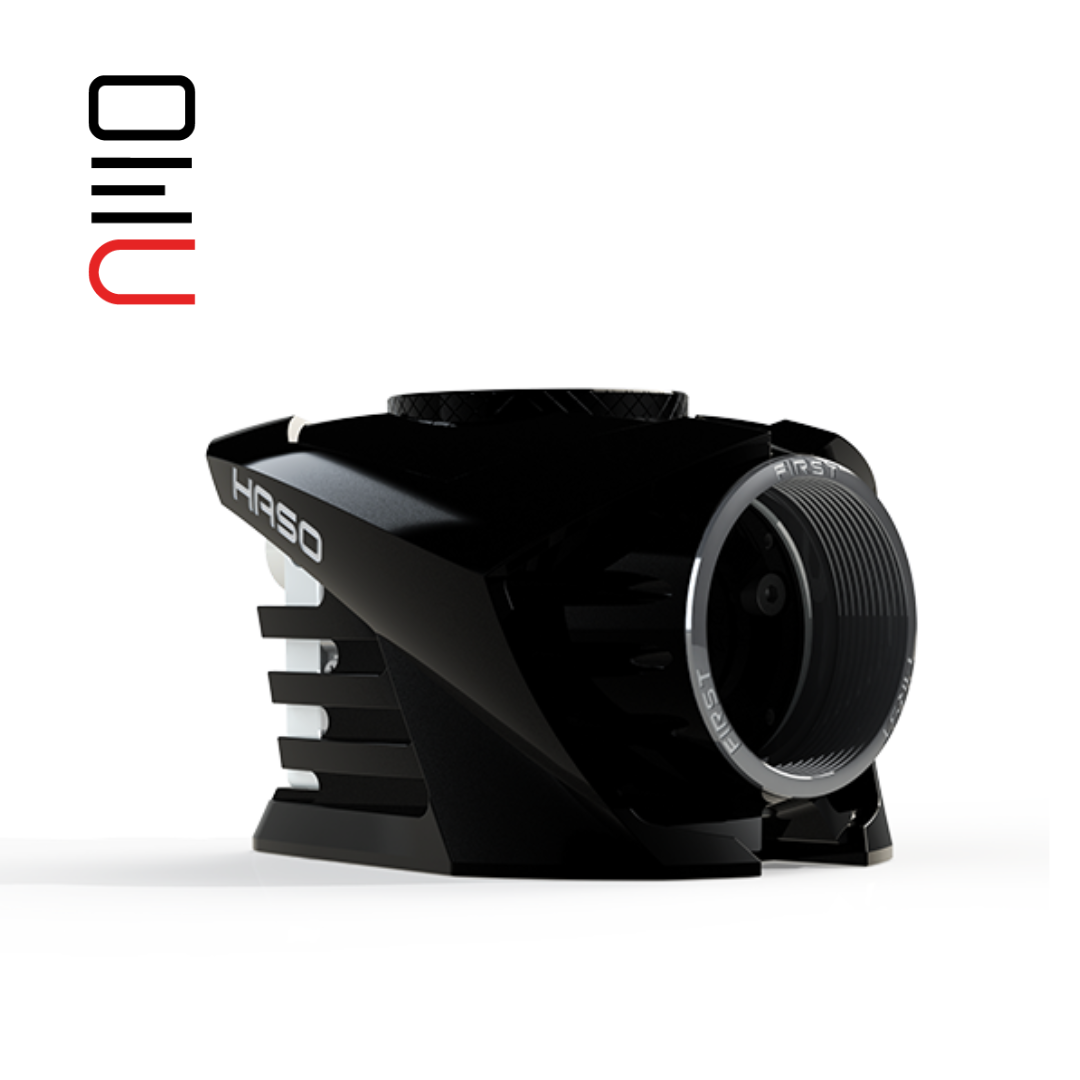

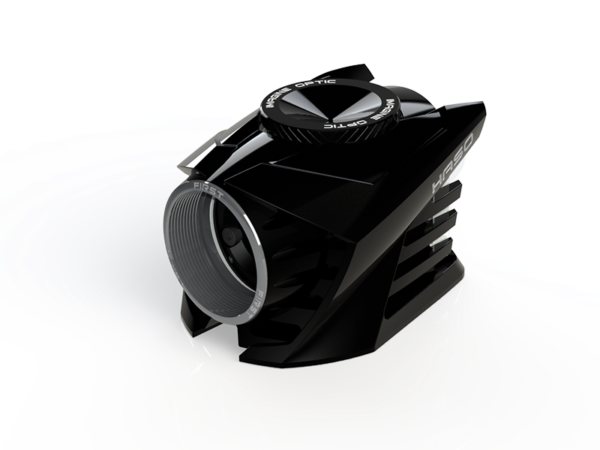

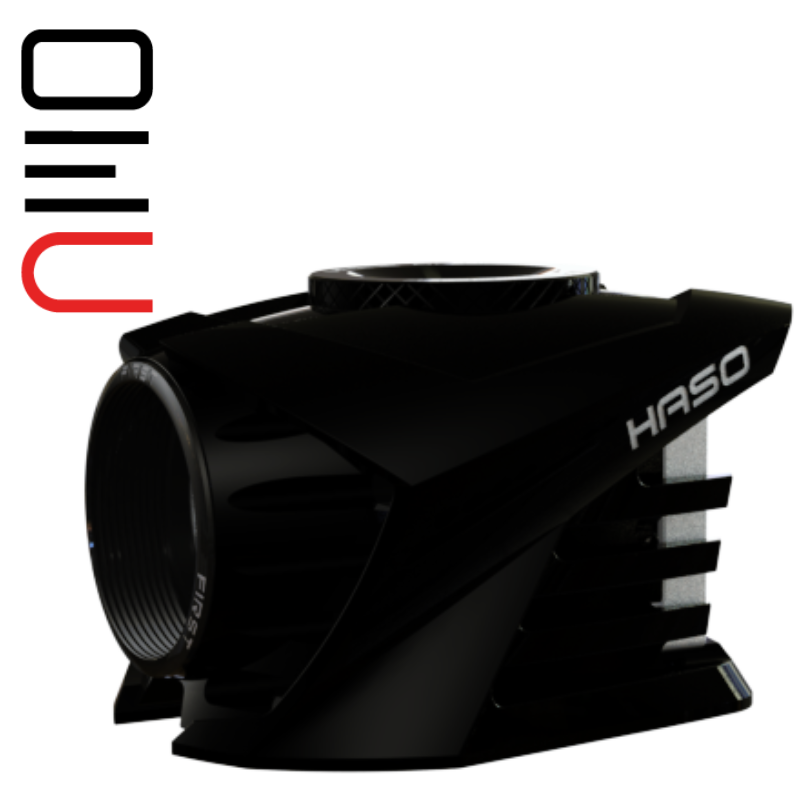

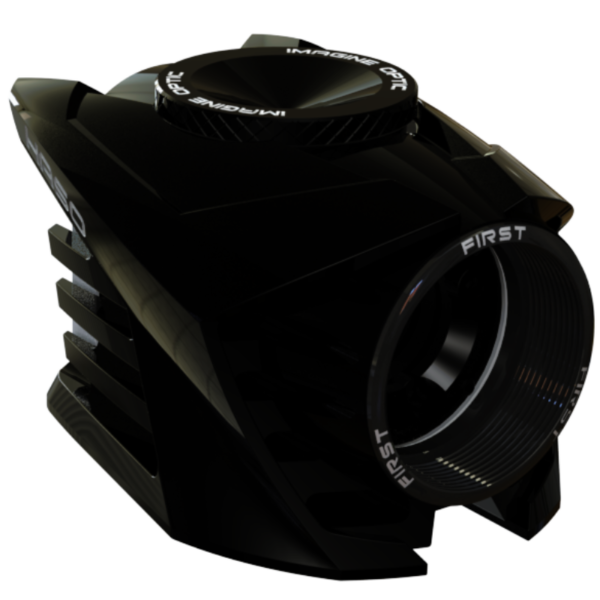

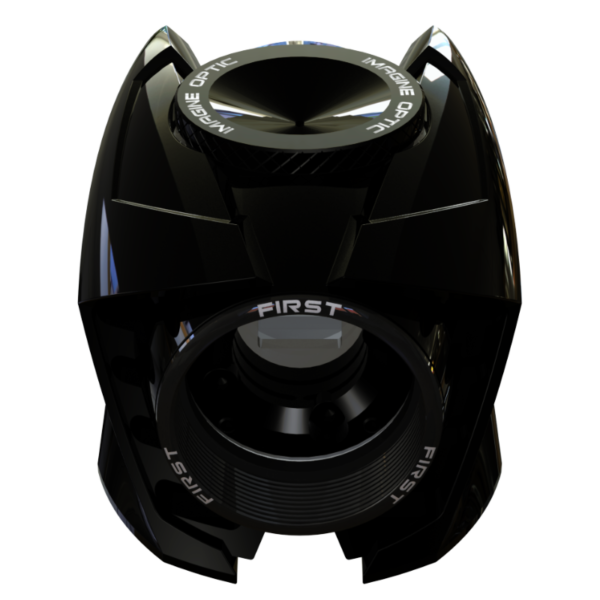

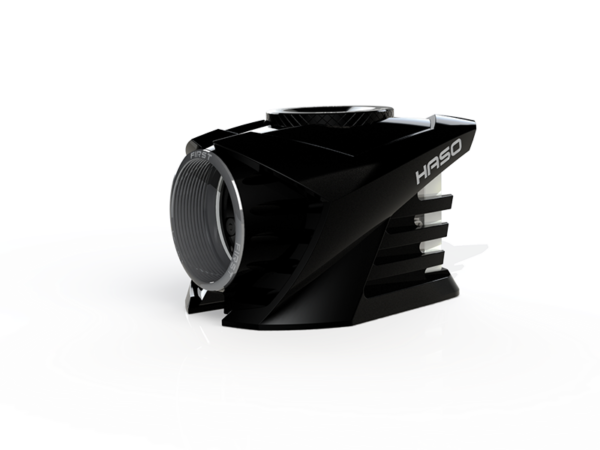

HASO FIRST Wavefront sensor
The HASO FIRST Shack Hartmann wavefront sensor combines all the unique features developed by Imagine Optic during 30+ years of innovation and customers feedback: ease of use (absolute measurement thanks to the embedded factory calibration), high performance (high accuracy of lambda/100 RMS, very large dynamic range), robustness (phase measurement independent of beam intensity variation, achromaticity over calibrated spectral range, insensitivity to vibrations).
The HASO FIRST wavefront sensor is fully compatible with the Optical Engineer Companion, our family of versatile modules that combine together instantaneously to create any optical testing configuration you need.
Applications+ Quantify optical system’s aberrations
+ Check if optical mount distorts optics
+ Verify compliance with specifications
+ Align system for optimal performance
+ Predict system’s focalization and imaging quality
+ Measure effects of temperature and gravity on performance
+ Pilot wavefront corrector to change aberrations
+ Diagnose laser beam, adjust and check pointing stability
+ Collimate optical systems and lasers
+ Quantify optical components and systems dependency to wavelength
|
Best For+ Adaptive optics applications for microscopy or ultra-high intensity Laser (UHIL)
+ OEM and industrial applications in optical metrology and beam diagnostics
+ Single wavelength applications
+ Small beams
|
SOFTWARE
WAVEVIEW (included) is the most advanced wavefront measurement and analysis software including more than 150 features and tools optimized for a wide range of highly demanding applications.
+ Extensions for PSF, MTF, Strehl ratio, M-Squared parameter and Advanced Zernike (annular or elliptical)
+ Windows 11 and 10 compatible
WAVETUNE (optional) is a unique software that seamlessly combines wavefront measurement and correction features with extensive diagnostics.
It is perfectly adapted to our HASO and LIFT wavefront sensors, ILAO STAR, MIRAO and mu-DM deformable mirrors, as well as to a wide range of third-party phase correctors from the market.
WAVEKIT (optional) is a SDK (Software Development Kit) in C/C++, LabVIEW and Python, providing the basis blocks on which one can build a fully customized software for specific HASO based applications or WaveView data processing routines.
+ include documentation and examples
+ available on request.
Description |
Specifications |
| Pupil size | 4.5 x 3.7 mm² |
| Absolute Accuracy (RMS) | λ/100 |
| Repeatablility (RMS) | < λ/200 |
| Microlens Numbers | 44 x 36 |
| Interface | USB 3.0 |
| Wavelength | 350-1100 nm |
| Max. acquisition frequency | 150 Hz |
