HASO4 126 VIS

High Spatial Sampling wavefront sensor

HASO4 126 VIS

High Spatial Sampling wavefront sensor

HASO4 126 VIS wavefront Sensor High Spatial Sampling 126×170 Phase-Points 30 Hz sampling large dynamic range Freeform optics characterization. It is the perfect Shack-Hartmann wavefront sensor for applications that require high sampling density or a very large dynamic range.

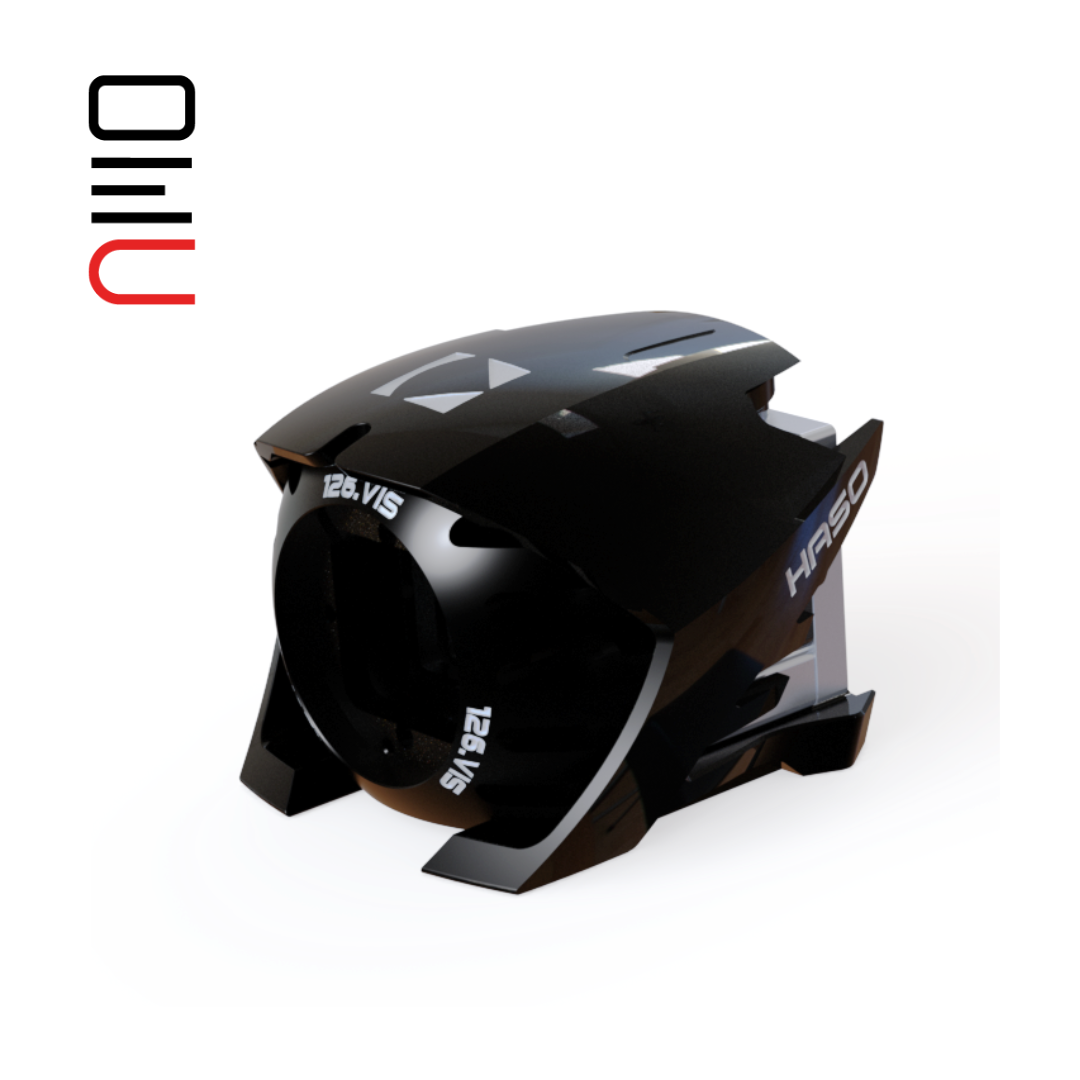

HASO4 126 VIS Wavefront sensor

Providing outstanding performance, the HASO wavefront sensor family is used worldwide in the most demanding applications in optical metrology, industrial control, microscopy and laser diagnostics. We offer a unique combination of expertise in high-quality microlens production, software development and accurate factory calibrations. The HASO4 126 VIS  is the perfect Shack-Hartmann wavefront sensor for applications that require high sampling density or a very large dynamic range. It features the new SpotTracker system, providing absolute wavefront and tilt information and eliminating alignment requirement. This allows the HASO4 126 VIS to provide high performance for applications requiring a high spatial frequency and very large dynamic range.

Compatible with the Optical Engineer Companion .



BEST FOR VERSATILITY

– High spacial samplig frequency
– Very large dynamic range
– Freeform optics characterization
– Parabolic mirrors characterization
– High spacial frequency aberrations



SOFTWARE

WAVEVIEW metrology software with 150 functions included
+ Extensions for PSF, MTF and Strehl ratio
+ Optional SDK for interfacing
WAVETUNE Adaptive Optics software
+ Extensions for AO applications
+ Optional SDK for interfacing with any custom system
Windows10 compatible

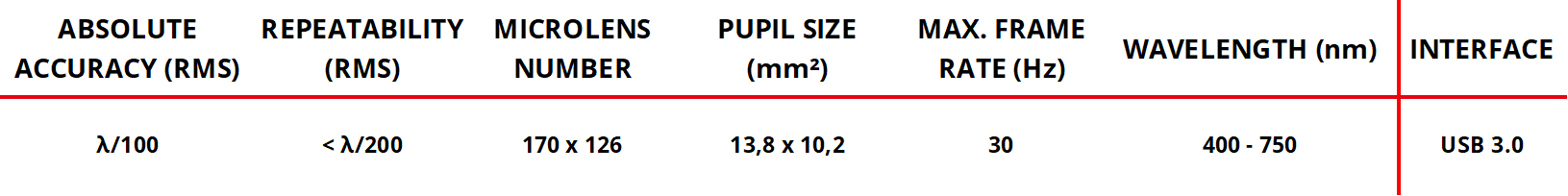

HASO4-126-wavefront-sensor-specs-table-2203
