HASO LIFT 680

The only 680×504 Phase-Points Resolution Alignment-Free Wavefront Sensor

HASO LIFT 680

The only 680×504 Phase-Points Resolution Alignment-Free Wavefront Sensor

The HASO LIFT 680 combines the highest resolution in Shack-Hartmann technology and a very large dynamic range.
It features the new SpotTracker technology, providing absolute wavefront sensing and tilt information and eliminating alignment requirements . Check out the HASOs Table to see our Full HASO SERIES, compare specs and choose what fits your requirements !!

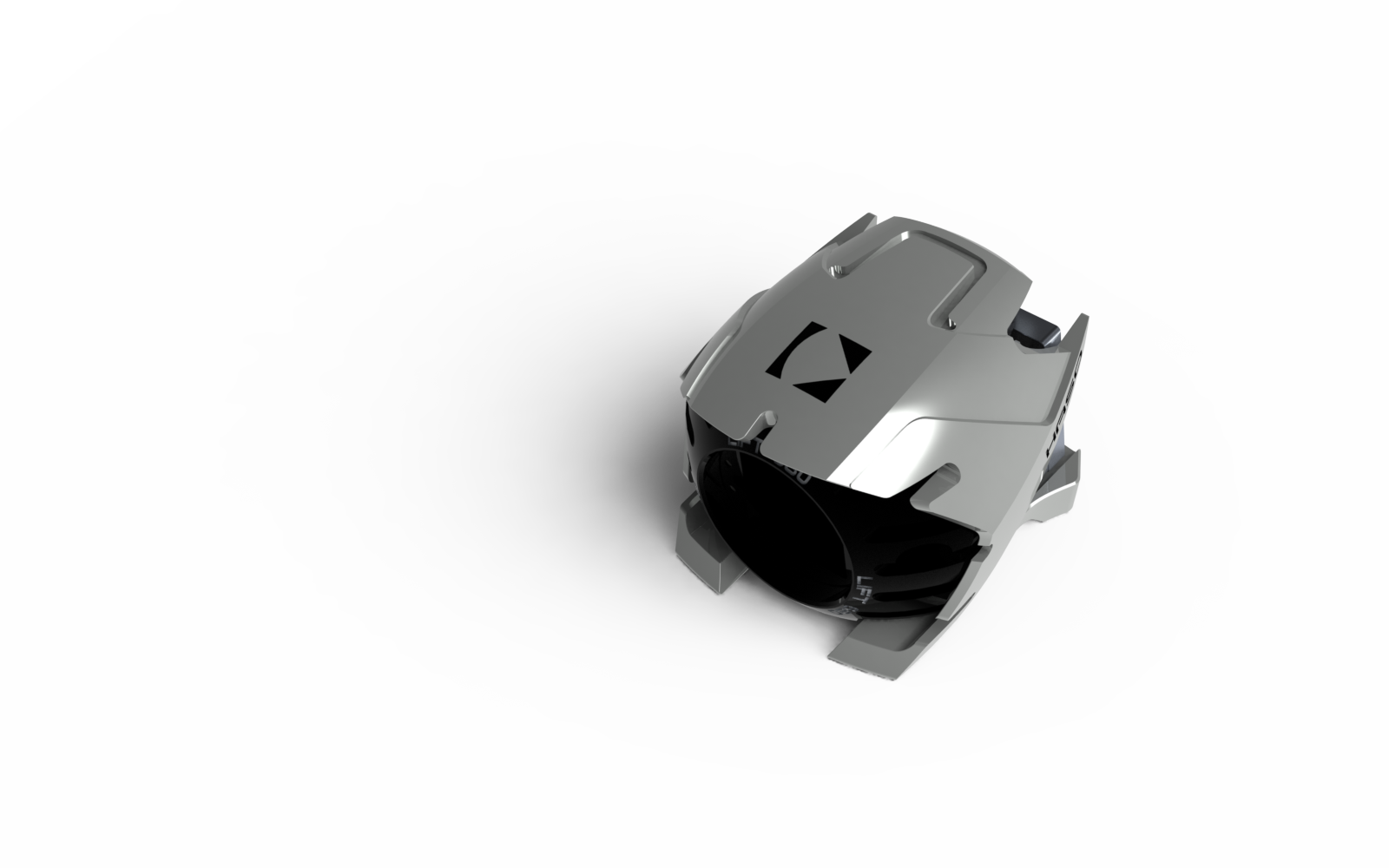

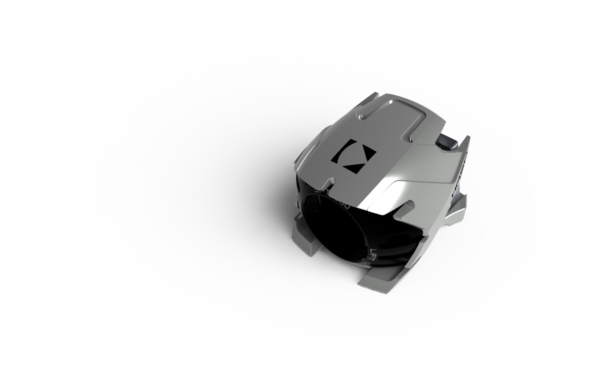

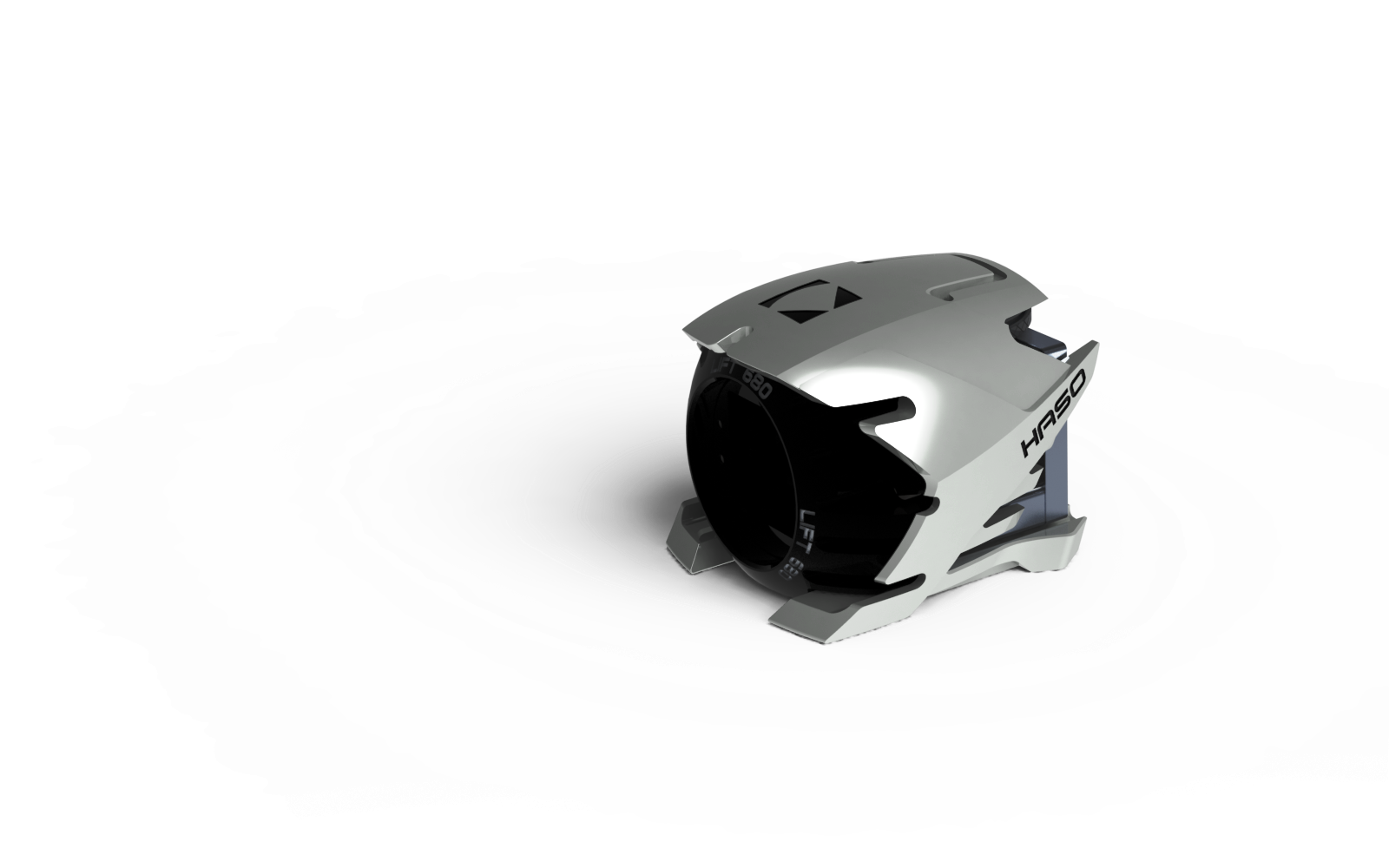

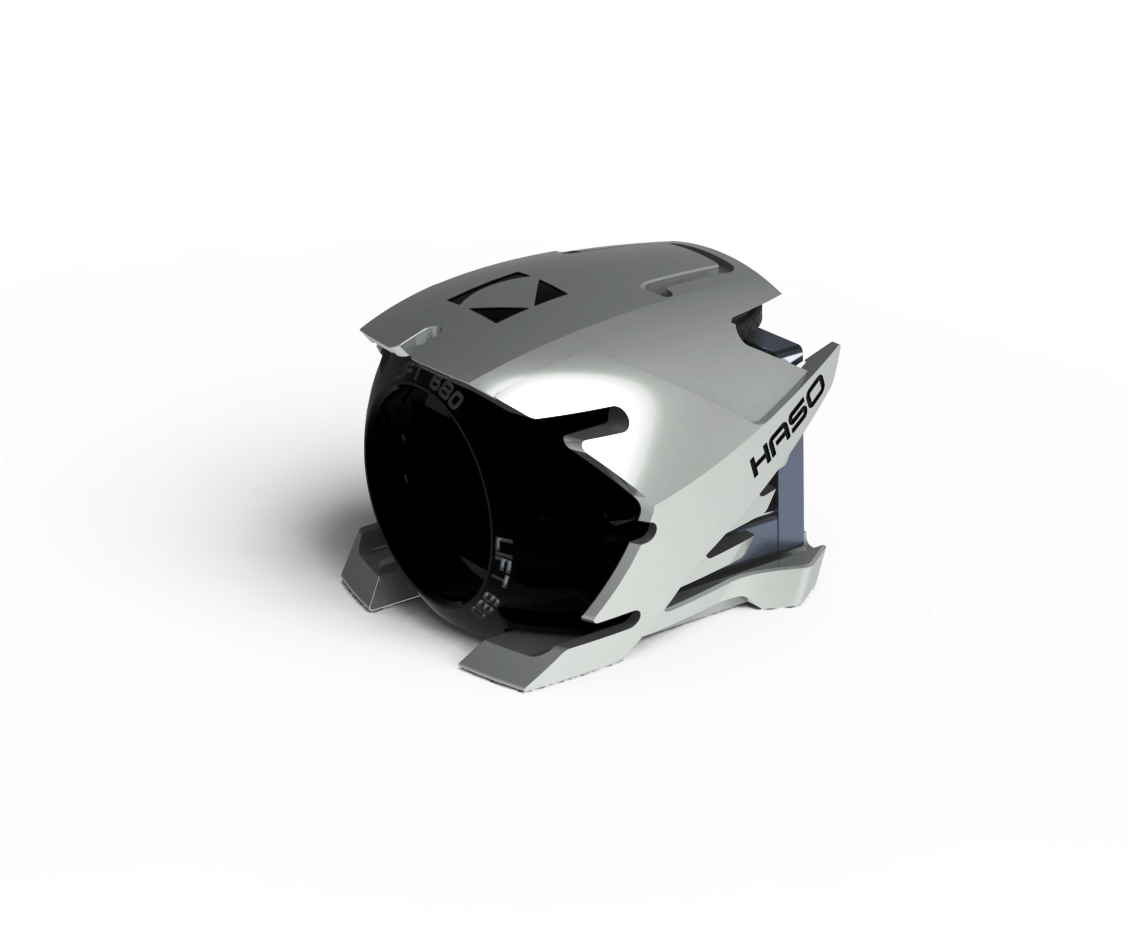

HASO LIFT 680 Wavefront sensor



The HASO LIFT 680 wavefront sensor is as powerful as its counterpart in terms of accuracy and dynamic range, while offering an unequaled resolution of 680 x 504 phase points. Providing outstanding performance, the HASO wavefront sensor family is used worldwide in the most
demanding applications in optical metrology, industrial control, microscopy and laser diagnostics. This allows the HASO LIFT 680 to provide high-level of performance for applications requiring high accuracy, high dynamic range and high spatial resolution.

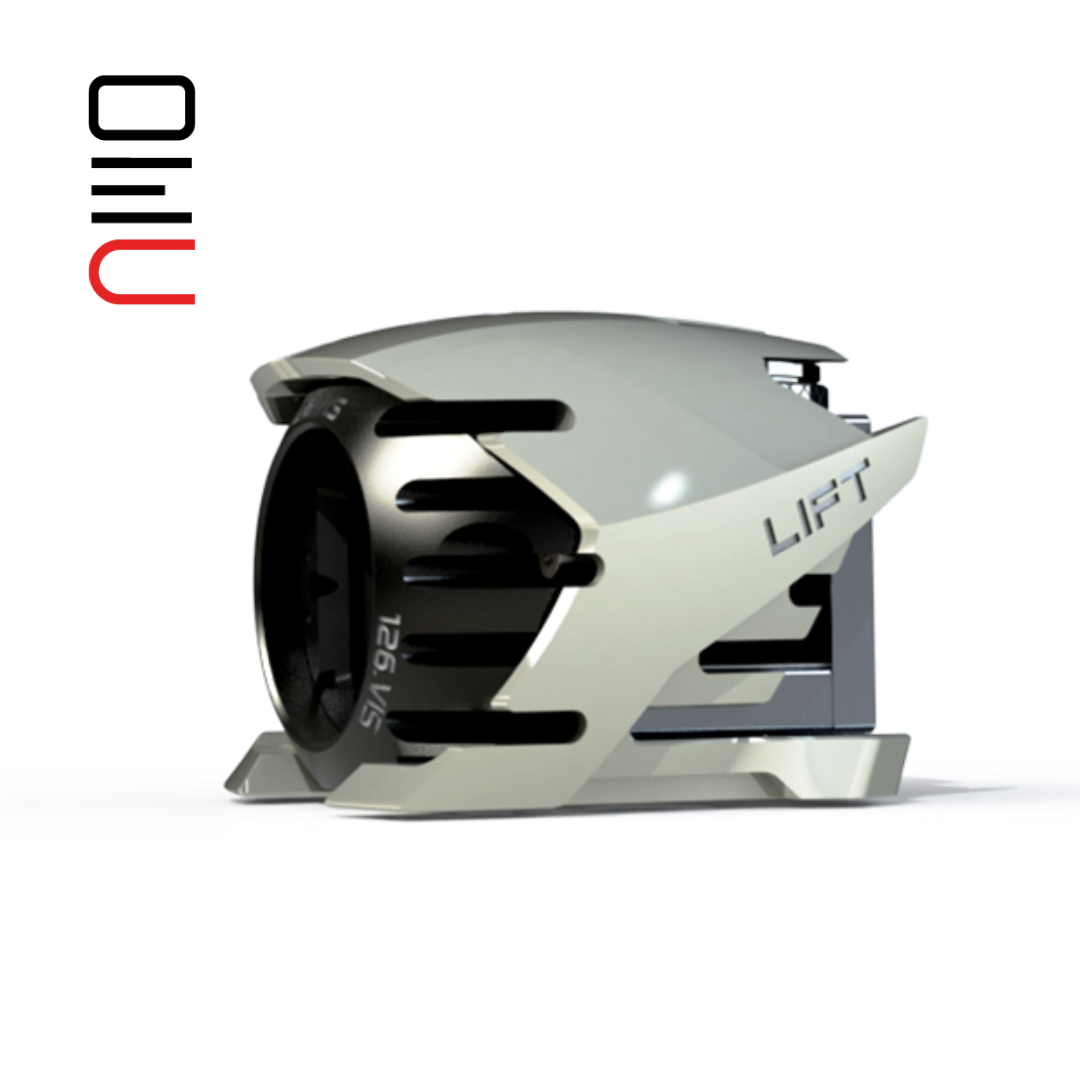

Compatible with the Optical Engineer Companion



BEST FOR CHALLENGING APPLICATIONS



– High spatial sampling frequency
– Very large dynamic range
– Freeform optics characterization
Parabolic mirrors characterization
– High spatial frequency aberrations



SOFTWARE for HASO LIFT 680 wavefront sensor



+ WAVEVIEW metrology software with 150 functions included
+ Extensions for PSF, MTF and Strehl ratio
+ Optional SDK for interfacing with any custom system
+ WAVETUNE Adaptive Optics software
+ Extensions for AO applications
+ Optional SDK for interfacing with any custom system
+ Windows10

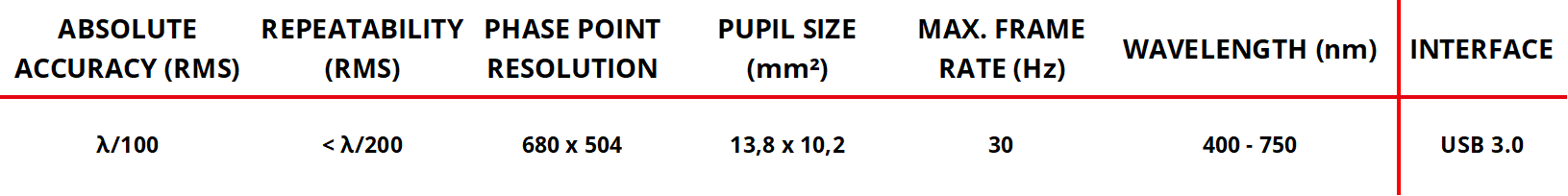

HASO-LIFT-680-wavefront-sensor-specs-table-2203
