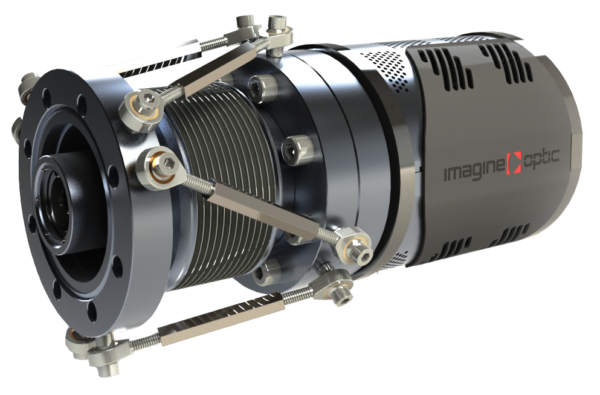

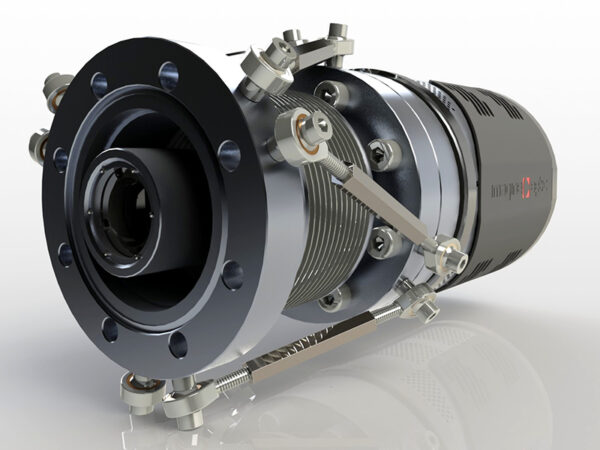

HASO EUV
The HASO EUV offers unsurpassed quality, precision and ease of use for ultra-short wavelength beam characterization, adjustment and alignment.
BEST FOR
– HHG, synchrotron and EUV-FEL beam alignment and characterization
– Mirror alignment in beamlines, Bender optimization
– Stability characterization
– Schwarzschild telescope alignment and characterization
– Zoneplace characterization
– Plasma science
SOFTWARE
WAVEVIEW metrology software with 150 functions included
+ Extensions for PSF, MTF and Strehl ratio
+ Optional SDK for interfacing
WAVETUNE Adaptive Optics software
+ Extensions for AO applications
+ Optional SDK for interfacing with any custom system
Windows10 compatible
Application note: Absolute measurement
Application note: Optimization of high harmonic beam line from the source to the focal spot
ABSOLUTE ACCURACY (RMS) | REPEATABILITY (RMS) | SUB-APERTURES NUMBER | PUPIL SIZE (mm²) | MAX. FRAME RATE (Hz) | WAVELENGTH (nm) | INTERFACE |
λ/50 | λ/200 | 72 x 72 | 13 x 13 | 1 | 4 – 40 (30 – 300 eV) | USB 2.0 |
