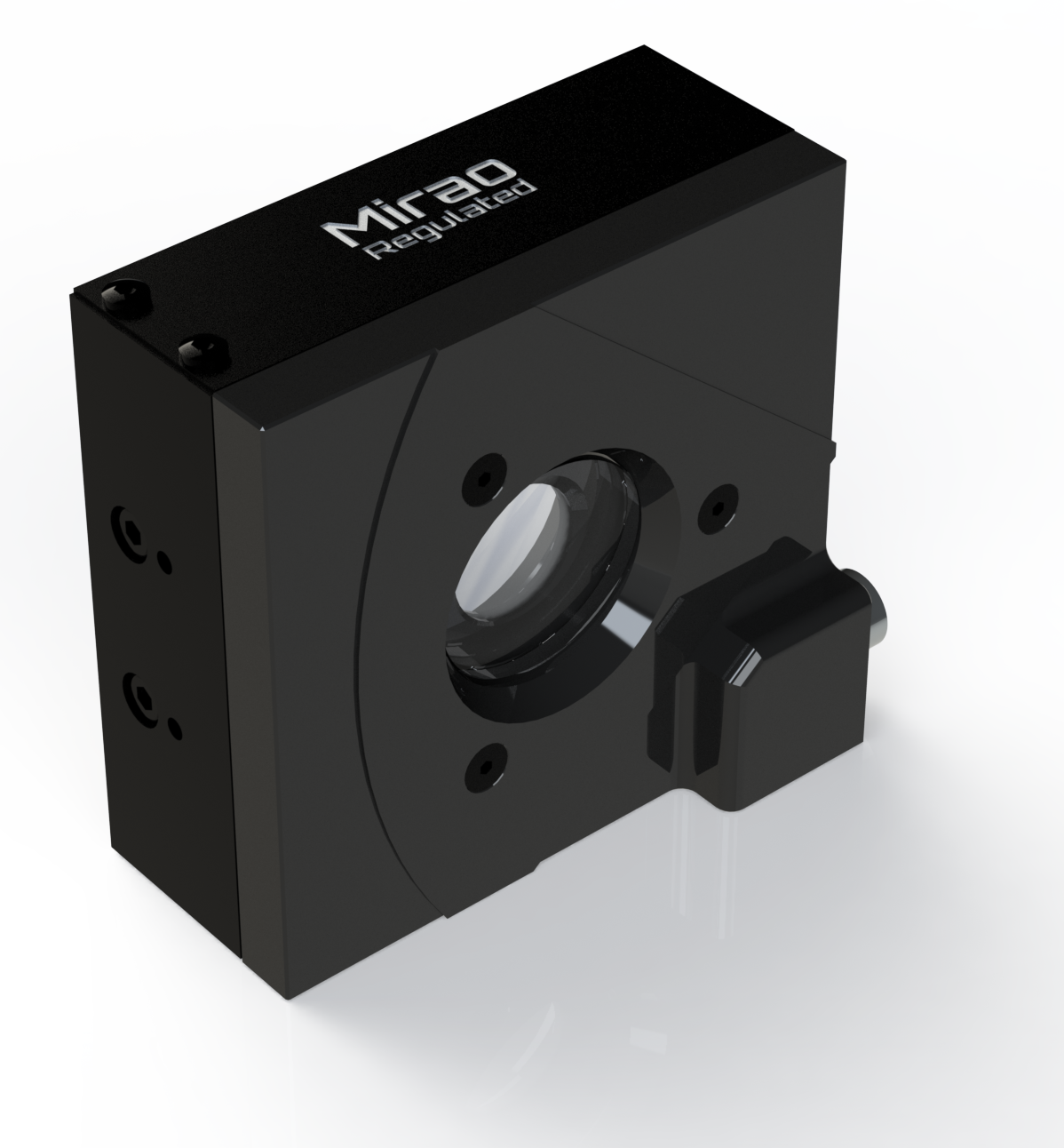

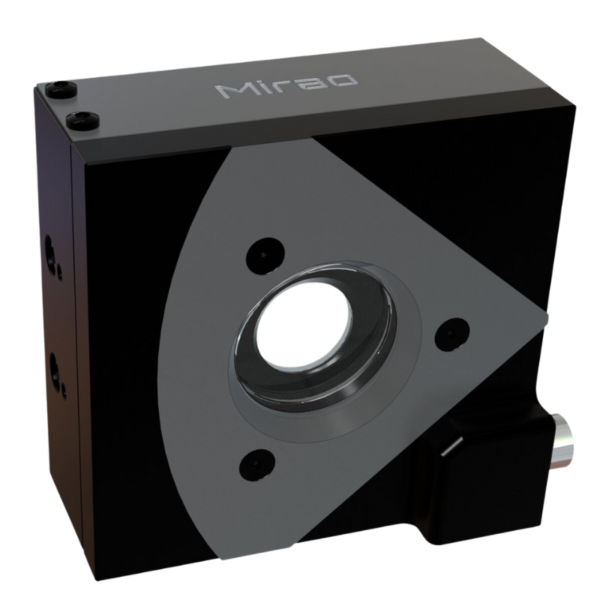

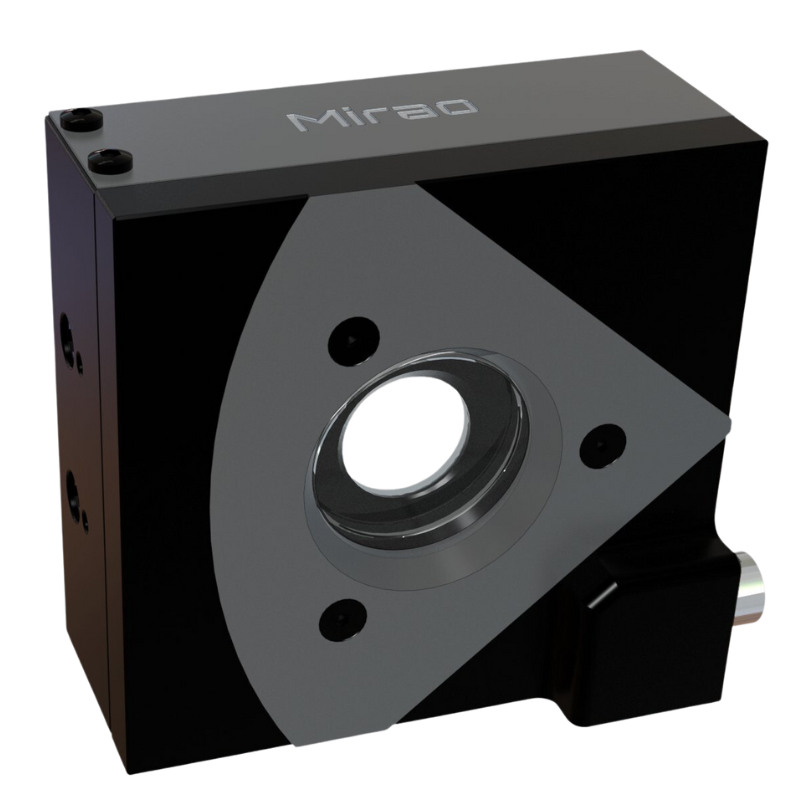

MIRAO 52ES

For long-term wavefront stability

MIRAO 52ES

For long-term wavefront stability



The exceptional feature of the Mirao 52es deformable mirror is its long-term stability in an open-loop mode, with typical drift of less than 10 nm RMS after 12 hours and up to 3 days.

MIRAO 52ES for long-term wavefront stability

Microscopy deformable mirror MIRAO 52es incorporates a unique technology that uses 52 electromagnetic actuators, enough to precisely correct up to 6th order Zernike modes. It also provides an exceptional 50µm PV deformation amplitude, which makes this mirror especially useful in various bio imaging and microscopy applications where large-amplitude aberrations need to be corrected.
The exceptional feature of the Mirao 52es deformable mirror is its long-term stability in an open-loop mode, with typical drift of less than 10 nm RMS after 12 hours and up to 3 days. Whenever a precise wavefront/PSF shape needs to be maintained during long term experiments – Mirao 52es is the perfect choice.


Microscopy deformable mirror MIRAO 52ES



KEY SPECS

+ ±50 µm stroke (tilt p/v)
+15 mm pupil with 52 actuators
+ Exceptional surface quality (<10 nm rms active flat)
+ Virtually no hysteresis (<2%) – Near perfect linearity (>95%)
+ Compatible with open-loop control
+ USB2 connectivity
+ Ultra-high temporal stability



Software

WAVEVIEW (included) is the most advanced wavefront measurement and analysis software including more than 150 features and tools optimized for a wide range of highly demanding applications.
+ Extensions for PSF, MTF, Strehl ratio, M-Squared parameter and Advanced Zernike (annular or elliptical)
+ Windows 11 and 10 compatible
WAVETUNE (optional) is a unique software that seamlessly combines wavefront measurement and correction features with extensive diagnostics.
It is perfectly adapted to our HASO and LIFT wavefront sensors, ILAO STAR, MIRAO and mu-DM deformable mirrors, as well as to a wide range of third-party phase correctors from the market.
WAVEKIT (optional) is a SDK (Software Development Kit) in C/C++, LabVIEW and Python, providing the basis blocks on which one can build a fully customized software for specific HASO based applications or WaveView data processing routines.
+ include documentation and examples
+ available on request.

Description

Specifications

Number of Actuators 52
Surface Quality <10 nm RMS
Coating Protected silver
Linearity > 95%
Interface USB 2.0
Hysteresis < 2%
Effective diameter 15 mm
