LIFT LP 512 Wavefront sensor

Direct 22mm large beam analysis Ultra High Resolution wavefront sensing

High-Resolution-large-pupil-wavefront-sensor-LIFT-LP
LARGE-PUPIL-Wavefront-sensor-VIS-BROADBAND
LARGE-PUPIL-Wavefront-sensor-VIS-BROADBAND image 2

LIFT LP 512 Wavefront sensor

Direct 22mm large beam analysis Ultra High Resolution wavefront sensing

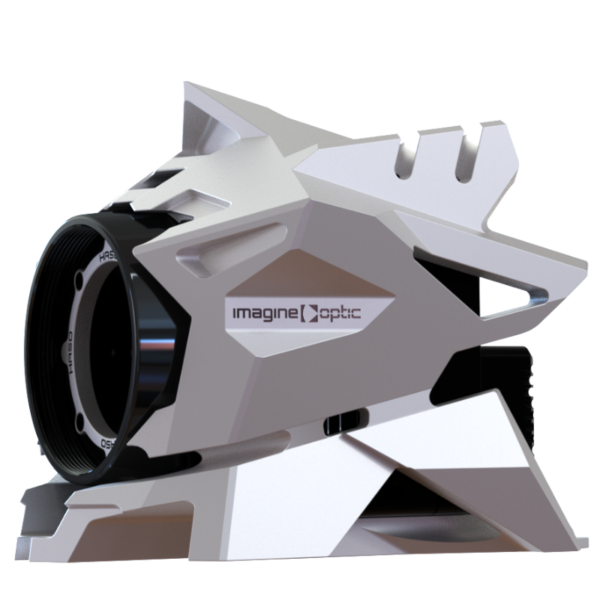

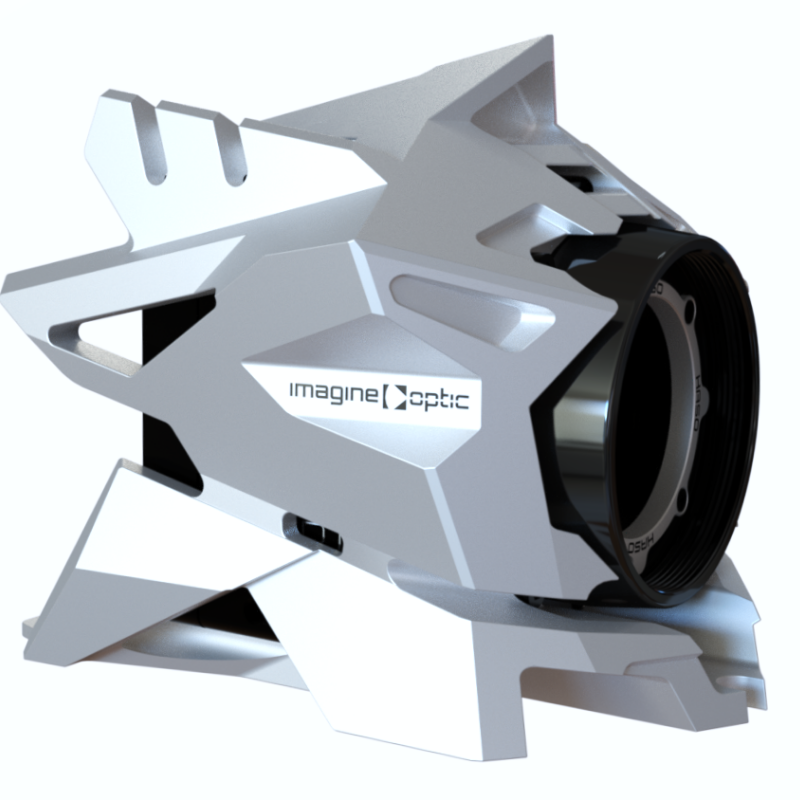

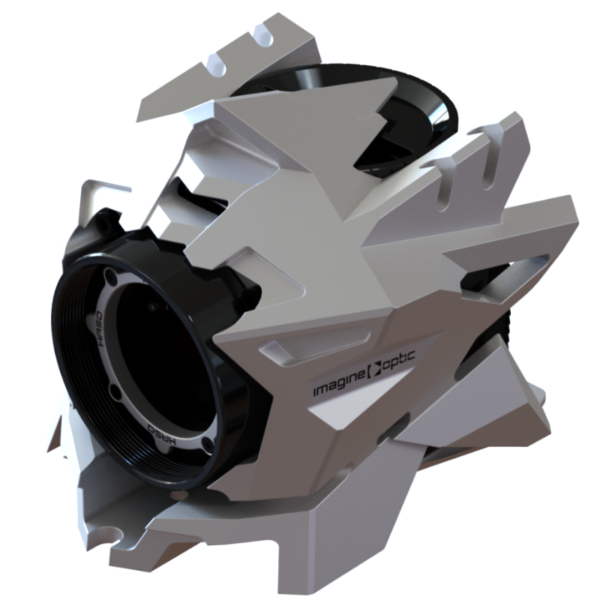

The LIFT LP 512 brings a very Large Pupil of analysis to phase retrieval LIFT wavefront sensing, which it combines with high accuracy absolute measurement.

It features the new SpotTracker technology, which provides absolute wavefront sensing and tilt information and makes sensor alignment a mere formality.
Check out the HASOs Table to see our full HASO and LIFT series: compare specs and choose what fits best your requirements!

Add to pre-quote

LIFT LP 512 Wavefront sensor

The LIFT LP 512 phase retrieval wavefront sensor combines all the unique features developed by Imagine Optic during 30+ years of innovation and customers feedback: ease of use (absolute measurement thanks to the embedded factory calibration), high performance (high accuracy of lambda/100 RMS, very large dynamic range), robustness (phase measurement independent of beam intensity variation, achromaticity over calibrated spectral range, insensitivity to vibrations) together with ultra high resolution (spatial resolution x16 compared with Shack Hartmann)





Applications

+ Quantify optical system’s aberrations
+ Characterize complex optics
+ Measure Mid-spatial frequency (MSF) errors
+ Check if optical mount distorts optics
+ Verify compliance with specifications
+ Align system for optimal performance
+ Predict system’s focalization and imaging quality
+ Measure effects of temperature and gravity on performance
+ Diagnose laser beam, adjust and check pointing stability
+ Collimate optical systems and lasers
+ Quantify optical components and systems dependency to wavelength

Best For

+ High spatial sampling testing
+ Large beam direct testing with no relay optics
+ High accuracy applications
+ Laser characterization and alignment
+ Large dynamic range compatibility



Software

WAVEVIEW (included) is the most advanced wavefront measurement and analysis software including more than 150 features and tools optimized for a wide range of highly demanding applications.
+ Extensions for PSF, MTF, Strehl ratio, M-Squared parameter and Advanced Zernike (annular or elliptical)
+ Windows 11 and 10 compatible
WAVETUNE (optional) is a unique software that seamlessly combines wavefront measurement and correction features with extensive diagnostics.
It is perfectly adapted to our HASO and LIFT wavefront sensors, ILAO STAR, MIRAO and mu-DM deformable mirrors, as well as to a wide range of third-party phase correctors from the market.
WAVEKIT (optional) is a SDK (Software Development Kit) in C/C++, LabVIEW and Python, providing the basis blocks on which one can build a fully customized software for specific HASO based applications or WaveView data processing routines.
+ include documentation and examples
+ available on request.

Description

Specifications

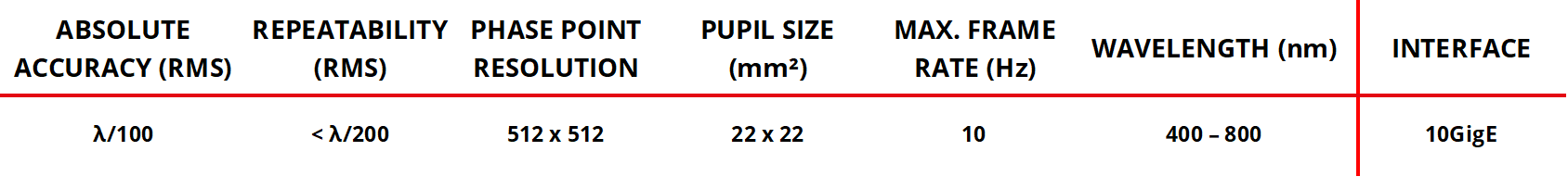

Pupil size 22 x 22 mm²
Absolute Accuracy (RMS) λ/100
Repeatablility (RMS) < λ/200
Phase Point Resolution 512 x 512
Interface 10GigE
Wavelength 400-800nm
Max. acquisition frequency 10 Hz



LIFT LP 512 wavefront sensor DATASHEET
Wavefront sensors BROCHURE
