HASO LP VIS & BROADBAND
Direct 22mm large beam analysis wavefront sensing
HASO LP VIS & BROADBAND
Direct 22mm large beam analysis wavefront sensing
The HASO LP brings a very Large Pupil of analysis Shack-Hartmann wavefront sensing.
It features the new SpotTracker technology, which provides absolute wavefront sensing and tilt information and makes sensor alignment a mere formality. Check out the HASOs Table to see our Full HASO and LIFT SERIES, compare specs and choose what fits your requirements!

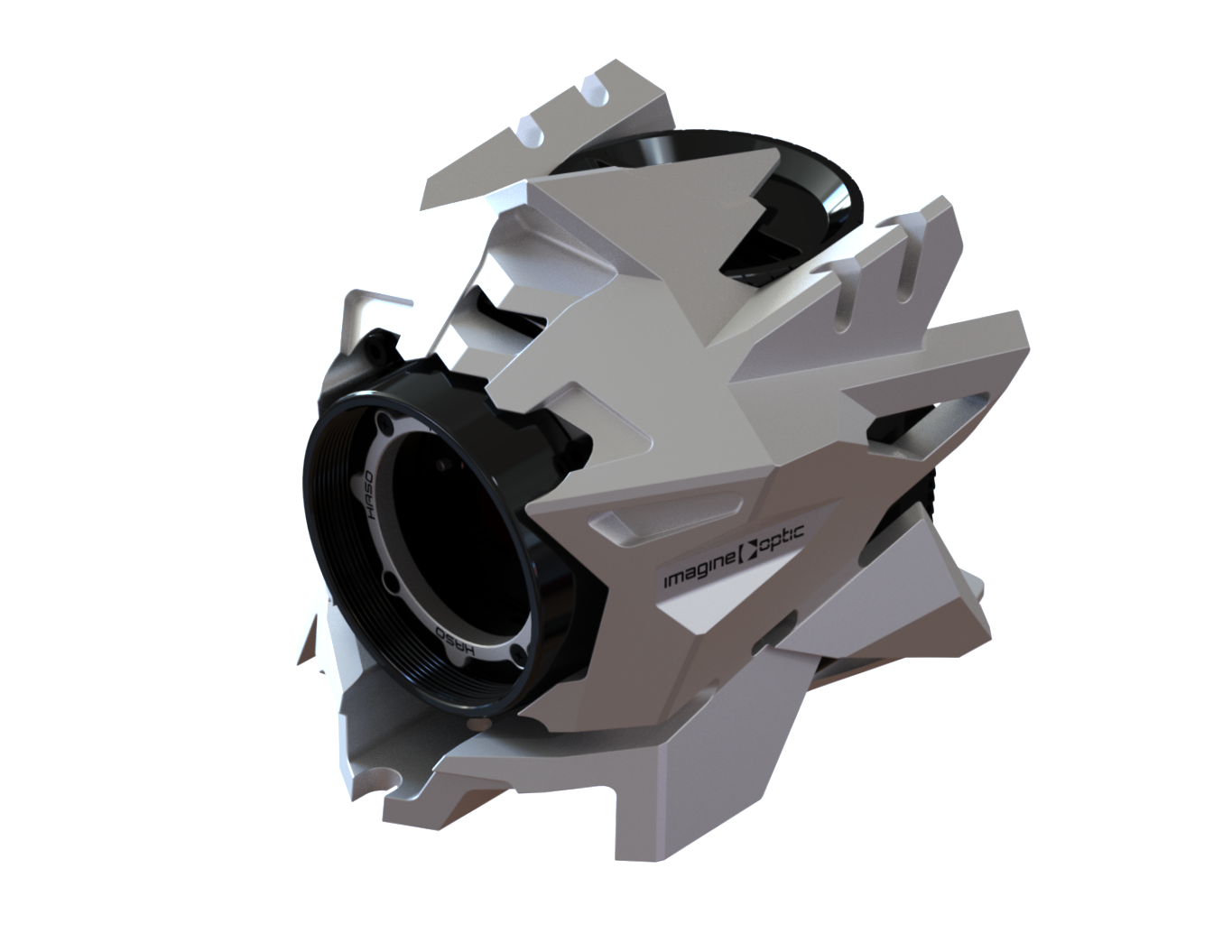

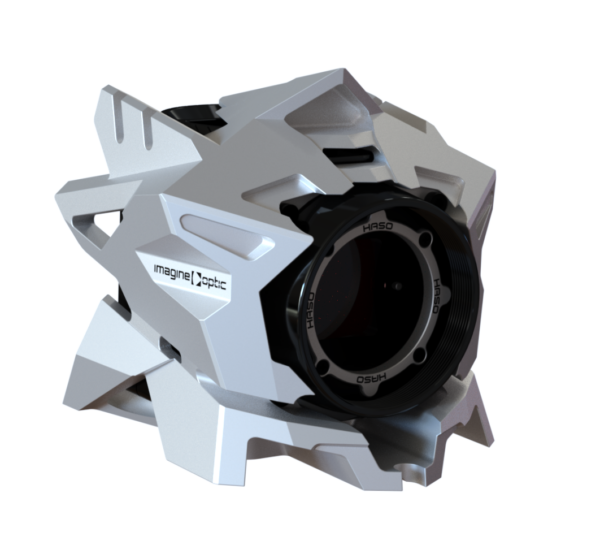

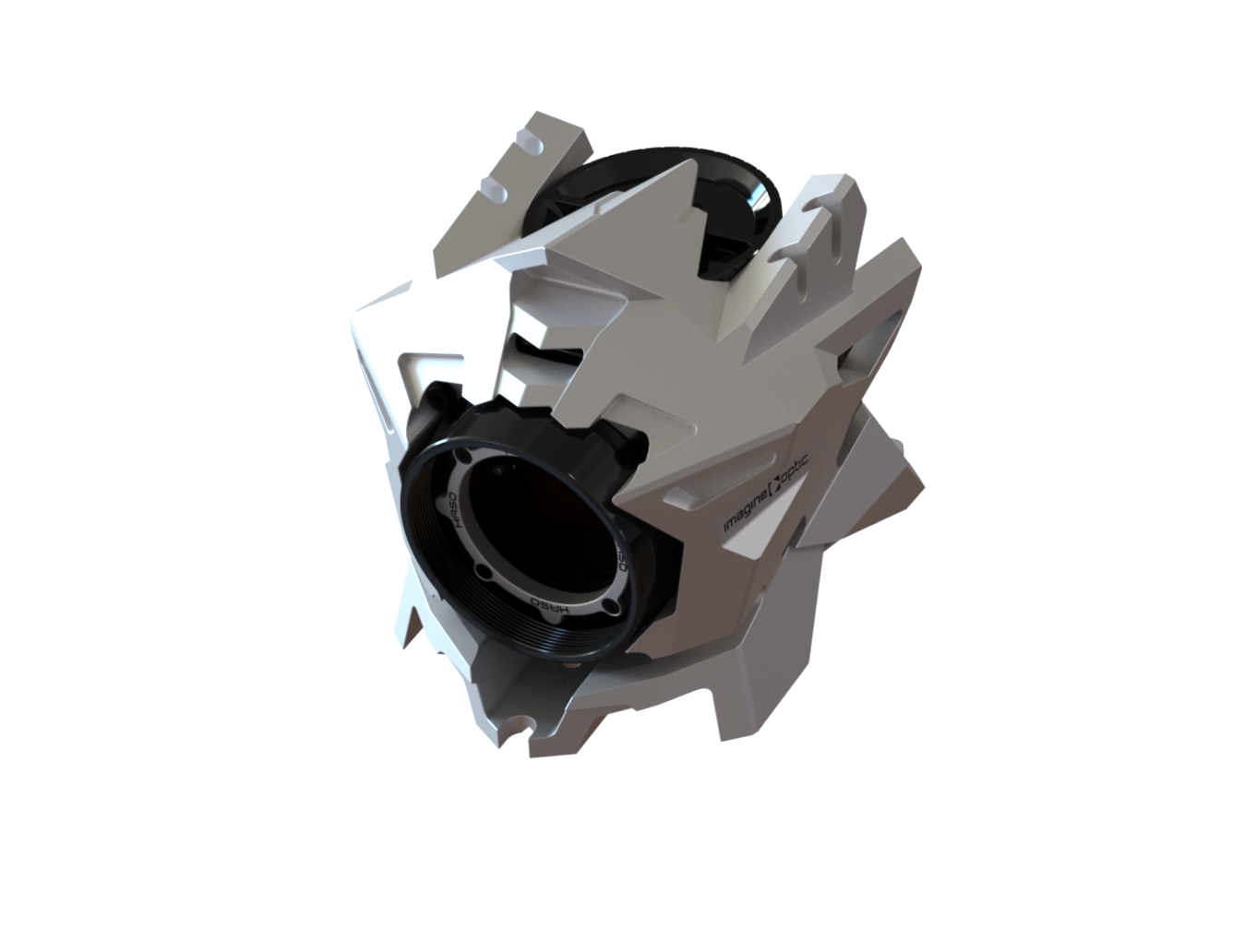

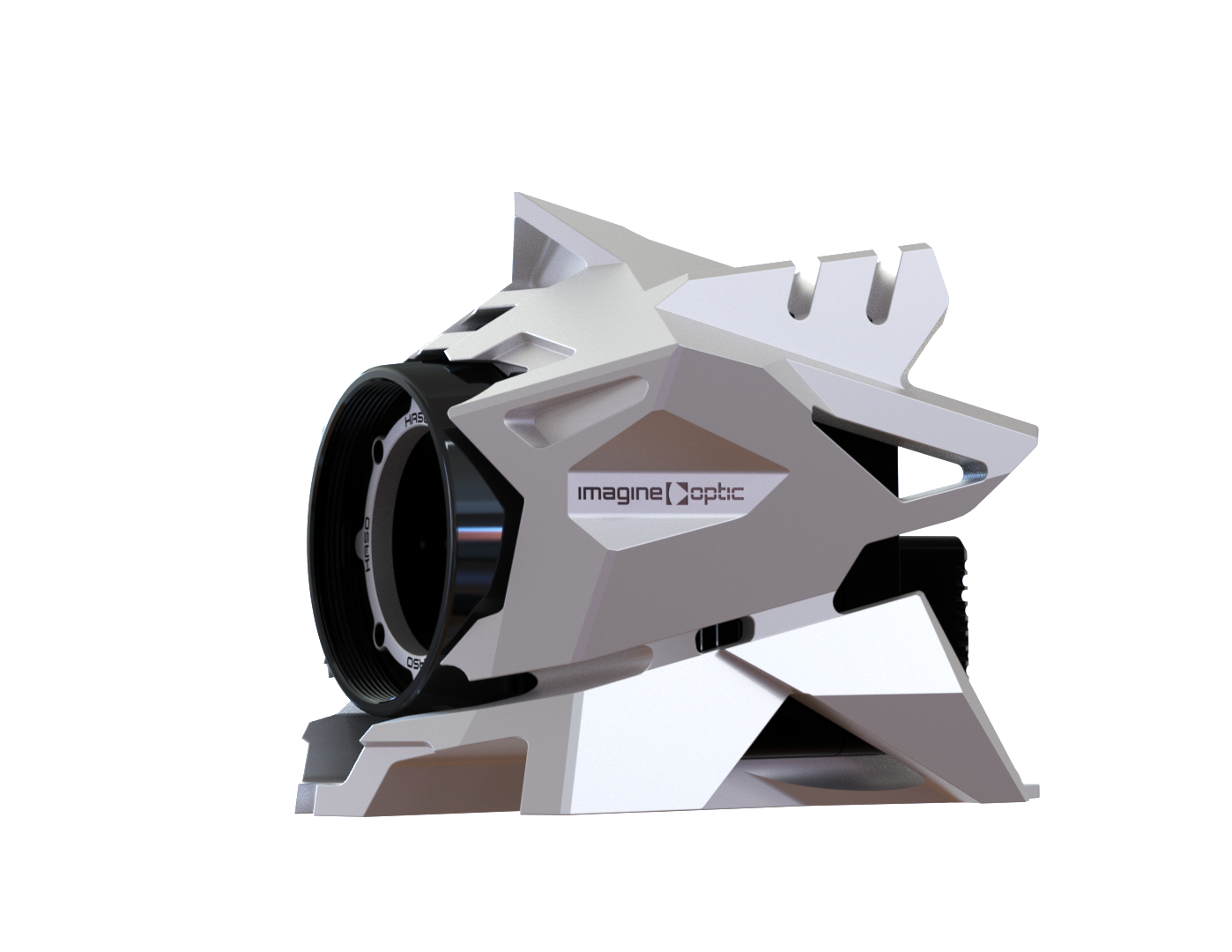

HASO LP Wavefront sensor
The HASO LP Shack Hartmann wavefront sensor combines all the unique features developed by Imagine Optic during 30+ years of innovation and customers feedback: ease of use (absolute measurement thanks to the embedded factory calibration), high performance (high accuracy of lambda/100 RMS, very large dynamic range), robustness (phase measurement independent of beam intensity variation, achromaticity over calibrated spectral range, insensitivity to vibrations)
Applications+ Quantify optical system’s aberrations
+ Check if optical mount distorts optics + Verify compliance with specifications + Align system for optimal performance + Predict system’s focalization and imaging quality + Measure effects of temperature and gravity on performance + Pilot wavefront corrector to change aberrations + Diagnose laser beam, adjust and check pointing stability + Collimate optical systems and lasers + Quantify optical components and systems dependency to wavelength” |
Best For+ Large beam direct testing with no relay optics
+ High accuracy applications
+ Laser characterization and alignment
+ Large dynamic range compatibility
+ High spatial sampling testing
|
Software
Description |

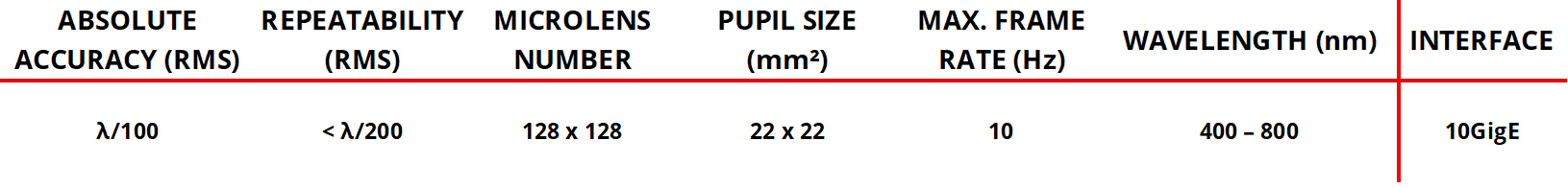

Specifications |
| Pupil size | 22 x 22 mm² |
| Absolute Accuracy (RMS) | λ/100 |
| Repeatablility (RMS) | < λ/200 |
| Microlens Number | 128 x 128 |
| Interface | 10GigE |
| Wavelength | 400-800nm |
| Max. acquisition frequency | 10 Hz |
