LIFT SWIR 160

Quality High Resolution wavefront sensing in the 980-1650nm spectrum

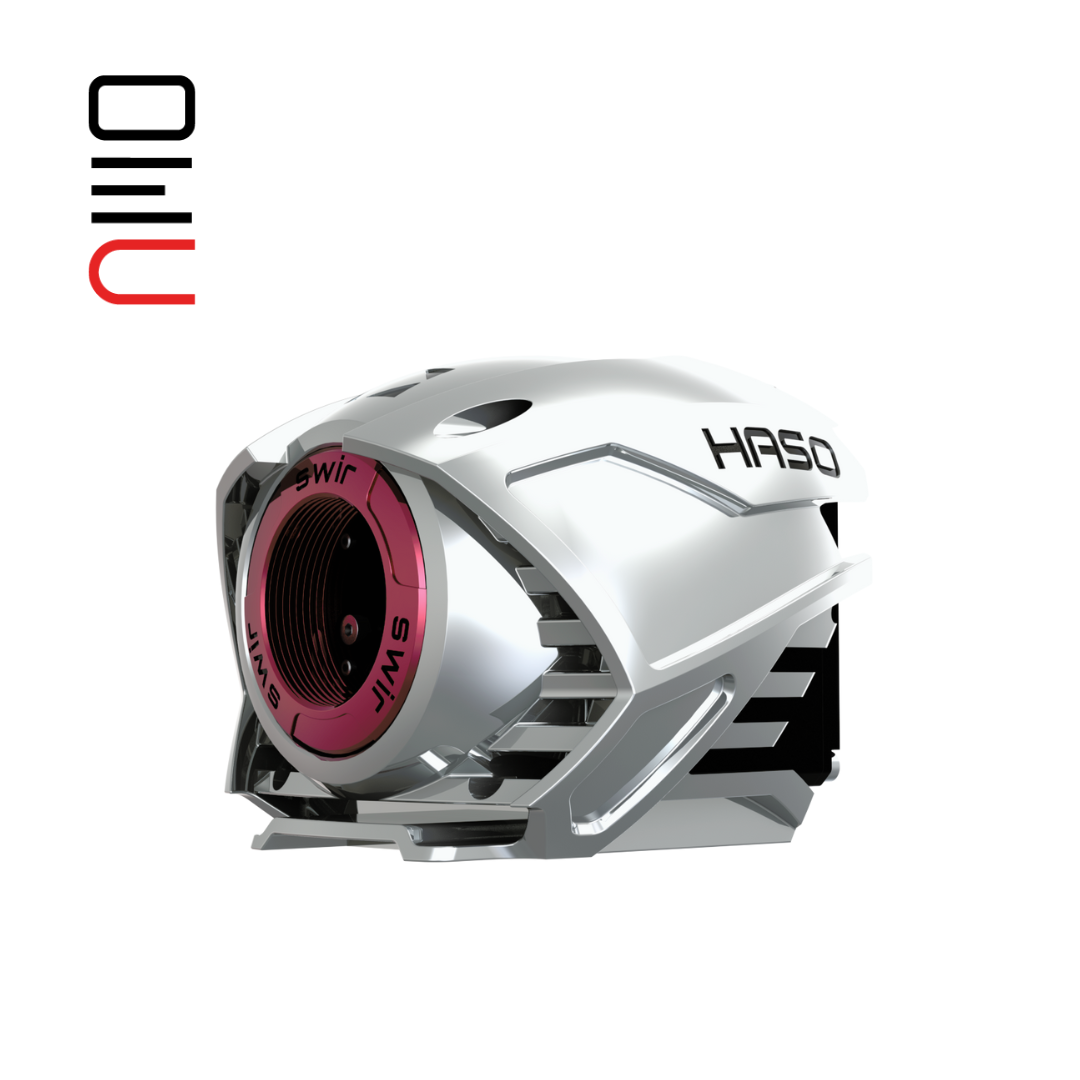

HASO-SWIR-LIFT-160-Wavefront-sensor
HASO-SWIR-LIFT-160-wavefront-sensor-image
HASO-SWIR-LIFT-160-wavefront-sensor-image
HASO-SWIR-LIFT-160-wavefront-sensor-image

LIFT SWIR 160

Quality High Resolution wavefront sensing in the 980-1650nm spectrum

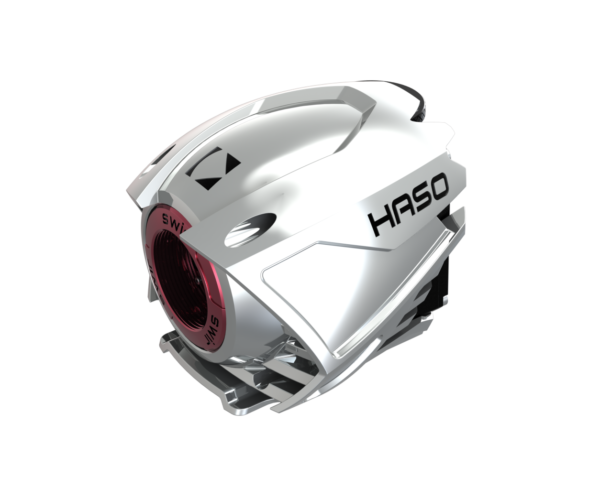

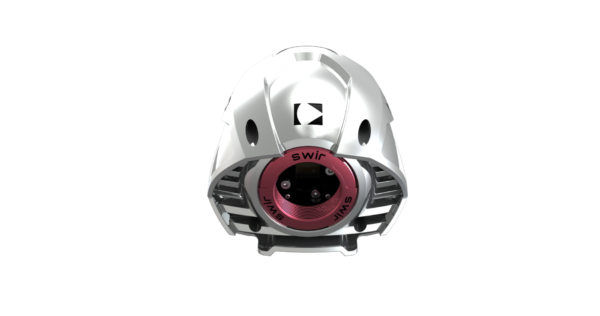

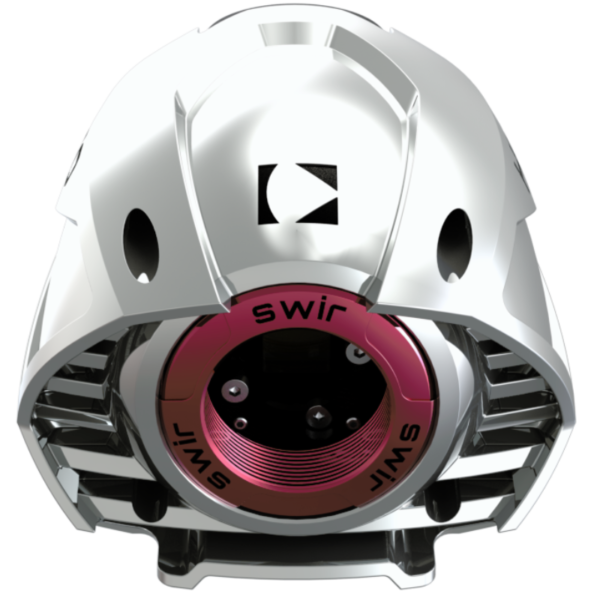

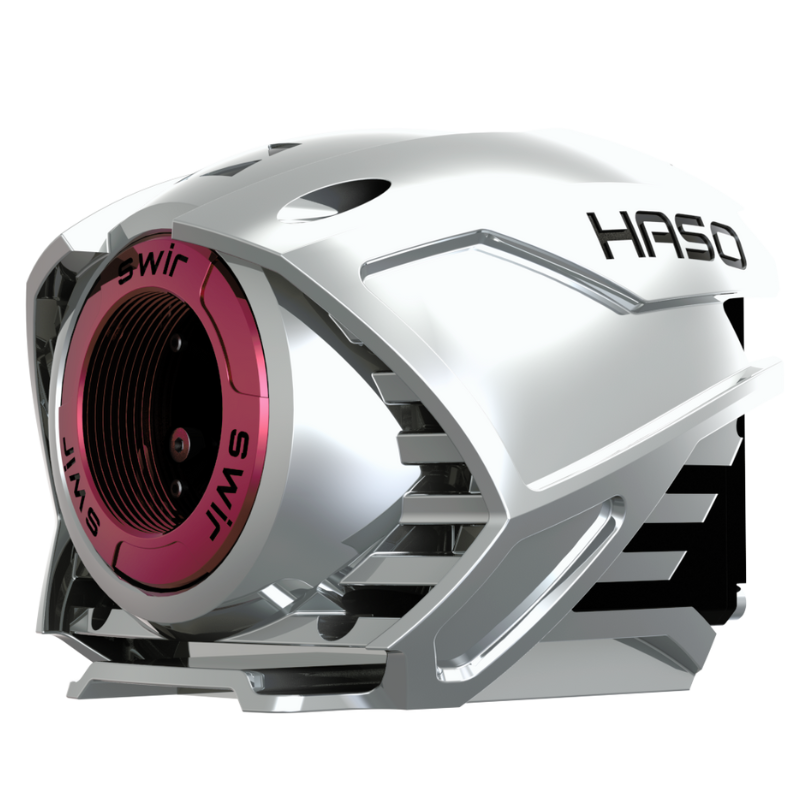

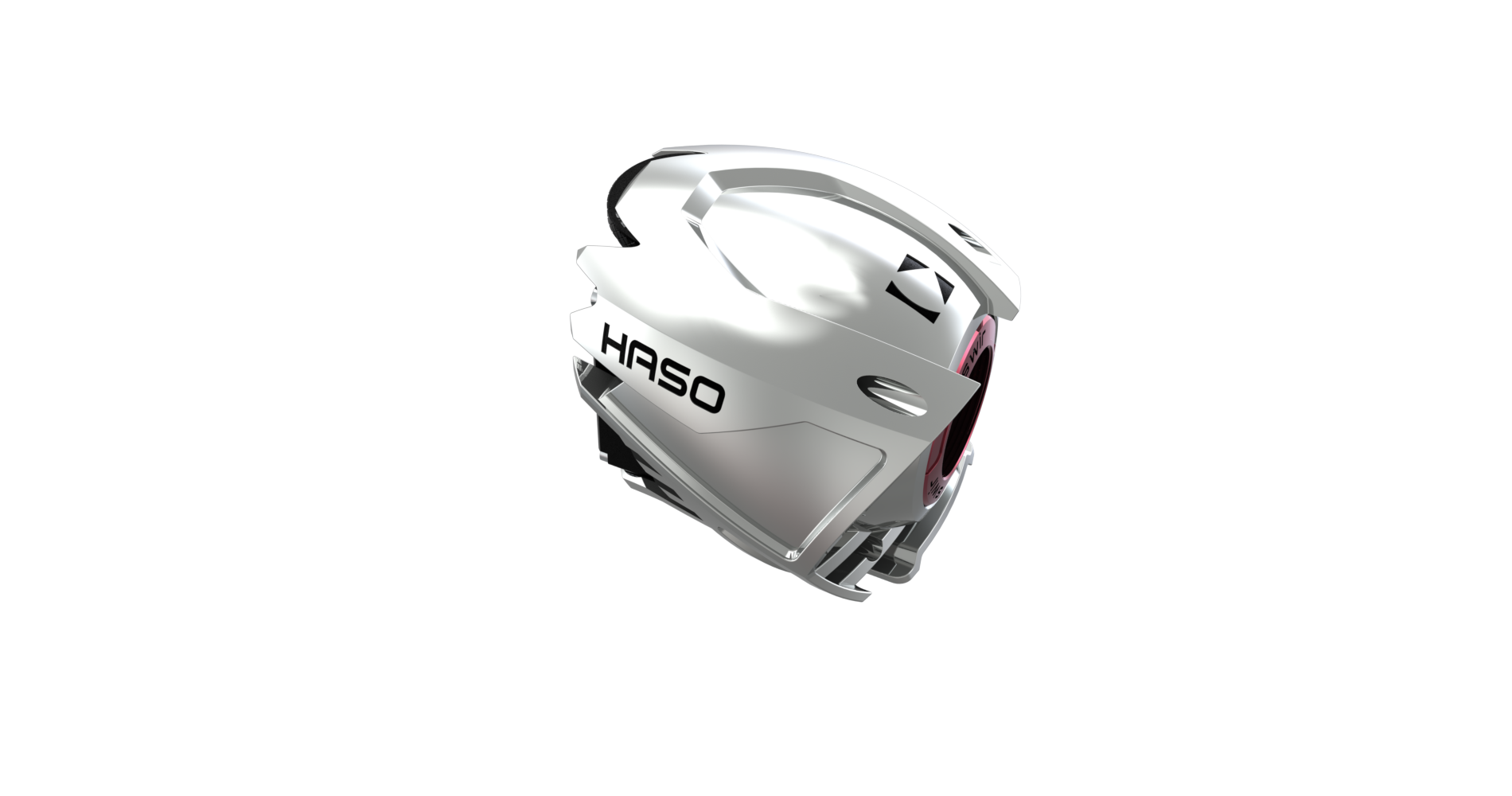

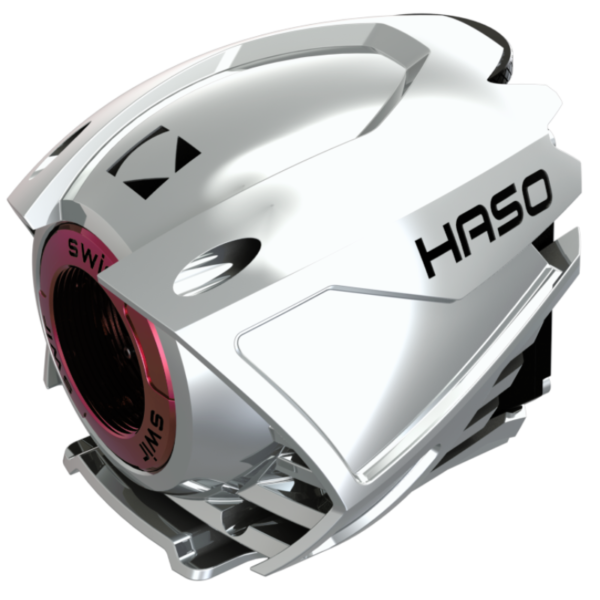

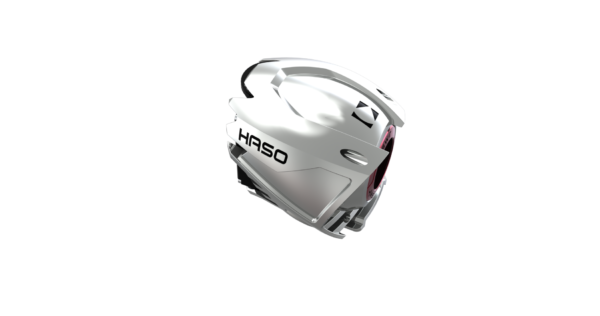

The LIFT SWIR 160 phase retrieval wavefront sensor is based on an InGaAs camera, offering high accuracy, large dynamic range and high-speed acquisition frequency in the NIR SWIR spectral range.
It features the new SpotTracker technology, which provides absolute wavefront sensing and tilt information and makes sensor alignment a mere formality.
Check out the HASOs Table to see our full HASO and LIFT series: compare specs and choose what fits best your requirements!

Add to pre-quote

LIFT SWIR 160 Wavefront Sensor

LIFT SWIR 160 phase retrieval wavefront sensor combines all the unique features developed by Imagine Optic during 30+ years of innovation and customers feedback: ease of use (absolute measurement thanks to the embedded factory calibration), high performance (high accuracy of lambda/100 RMS, very large dynamic range), robustness (phase measurement independent of beam intensity variation, achromaticity over calibrated spectral range, insensitivity to vibrations) together with ultra high resolution (spatial resolution x16 compared with Shack Hartmann)

The LIFT SWIR 160 wavefront sensor is fully compatible with the Optical Engineer Companion, our family of versatile modules that combine together instantaneously to create any optical testing configuration you need.

Applications

+ Quantify optical system’s aberrations
+ Characterize complex optics
+ Measure Mid-spatial frequency (MSF) errors
+ Check if optical mount distorts optics
+ Verify compliance with specifications
+ Align system for optimal performance
+ Predict system’s focalization and imaging quality
+ Measure effects of temperature and gravity on performance
+ Diagnose laser beam, adjust and check pointing stability
+ Collimate optical systems and lasers
+ Quantify optical components and systems dependency to wavelength

Best For

+ High spatial sampling testing
+ Free space optical communication
+ Quantum cryptography, space and defense
+ laser characterization and alignment, LIDAR, automotive





Software

WAVEVIEW (included) is the most advanced wavefront measurement and analysis software including more than 150 features and tools optimized for a wide range of highly demanding applications.
+ Extensions for PSF, MTF, Strehl ratio, M-Squared parameter and Advanced Zernike (annular or elliptical)
+ Windows 11 and 10 compatible
WAVETUNE (optional) is a unique software that seamlessly combines wavefront measurement and correction features with extensive diagnostics.
It is perfectly adapted to our HASO and LIFT wavefront sensors, ILAO STAR, MIRAO and mu-DM deformable mirrors, as well as to a wide range of third-party phase correctors from the market.
WAVEKIT (optional) is a SDK (Software Development Kit) in C/C++, LabVIEW and Python, providing the basis blocks on which one can build a fully customized software for specific HASO based applications or WaveView data processing routines.
+ include documentation and examples
+ available on request.

Description

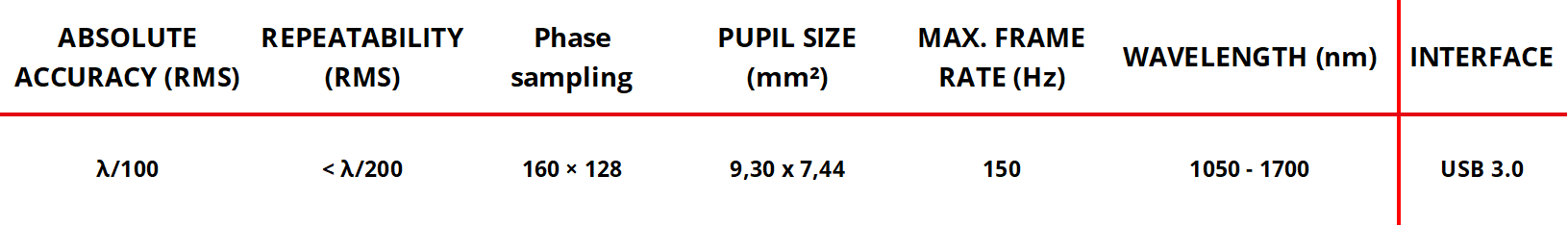

Specifications
Pupil size  9.3 x 7.4 mm²
Absolute Accuracy (RMS) λ/100
Repeatablility (RMS) < λ/200
Phase Sampling 160 x 128
Interface USB3
Wavelength 980-1650nm
Max. acquisition frequency 150 Hz



LIFT SWIR 160 DATASHEET
