HASO LIFT 272

The only 400 – 800 nm High-Resolution Alignment-Free Wavefront Sensor

HASO LIFT 272

The only 400 – 800 nm High-Resolution Alignment-Free Wavefront Sensor

The HASO LIFT 272 is the HR version (x16 resolution) of our most versatile wavefront sensor.
It features a 272×200 phasepoints resolution as well as the new SpotTracker technology, providing absolute wavefront and tilt information and eliminating alignment requirement. Check out the HASOs Table to see our Full HASO SERIES, compare specs and choose what fits your requirements !!

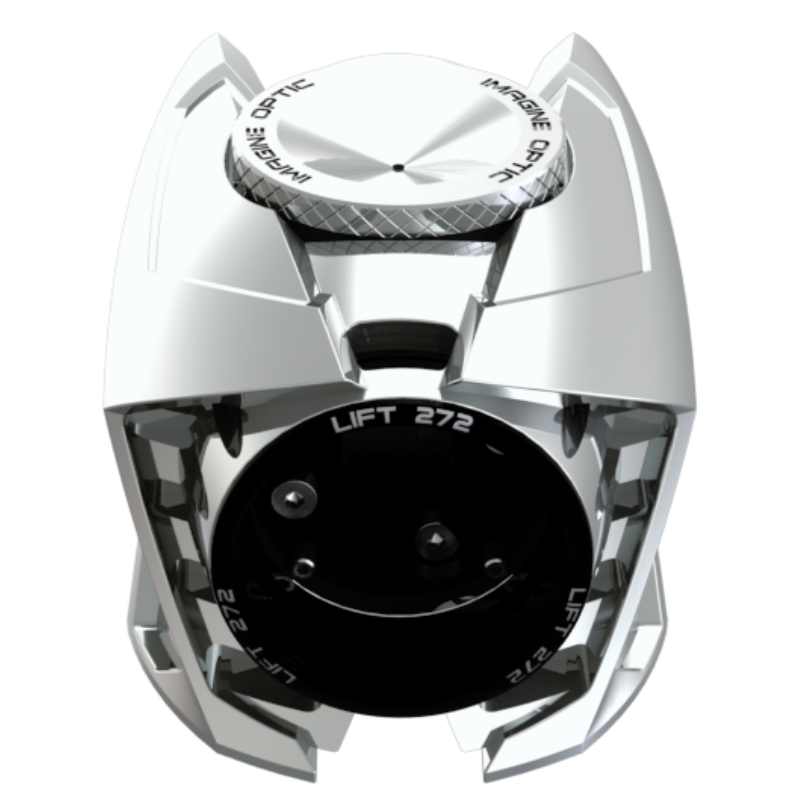

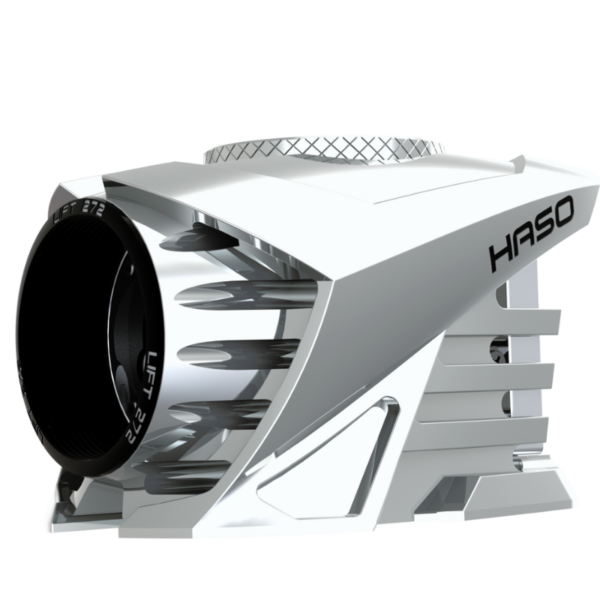

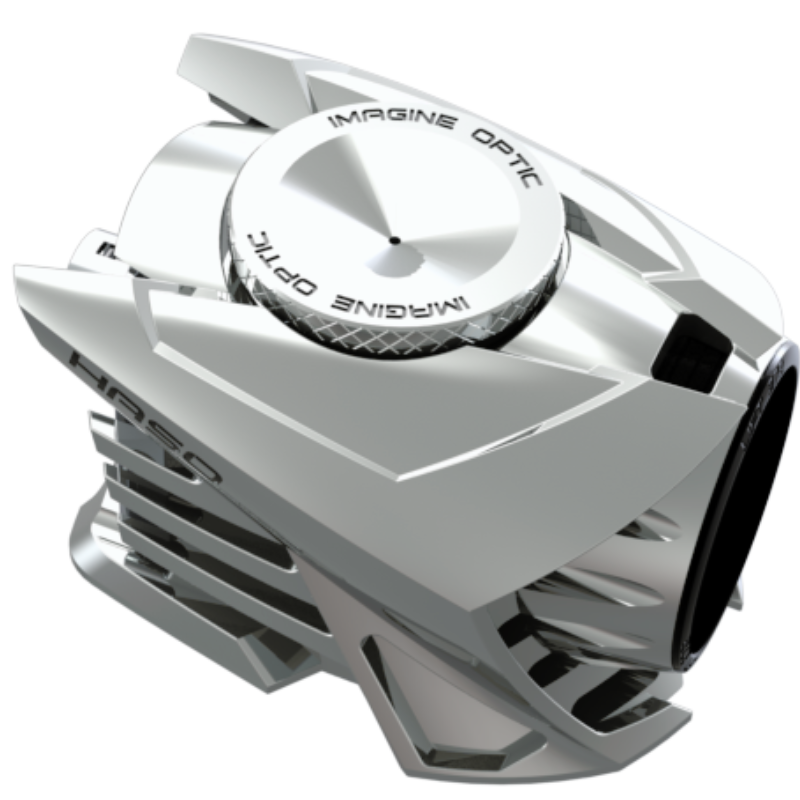

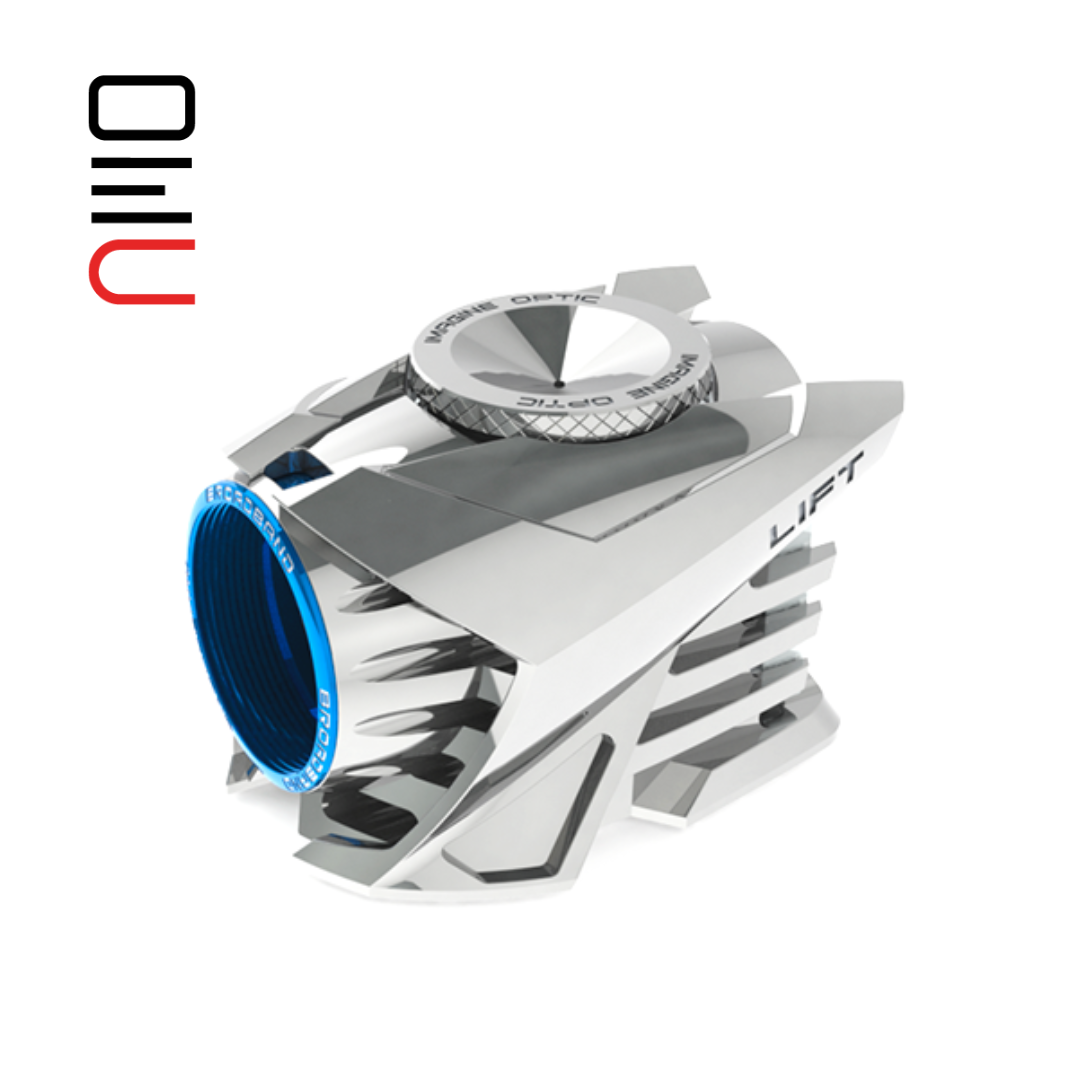

HASO LIFT 272 wavefront sensor



the HASO LIFT 272 wavefront sensor is as powerful as its counterpart in terms of accuracy and dynamic range, while offering an unequaled resolution of 272 x 200 phase points. This allows the HASO LIFT 272 to provide high-level of performance for applications requiring high accuracy, high dynamic range and high spatial resolution.

 BEST FOR VERSATILITY

– A great choice for lab or industrial application
– Successfully used in the most demanding of applications in optical metrology, microscopy and laser diagnostics.
– Optimize the alignment of complex systems
– On and off-axis 3D MTF



SOFTWARE compatible with the  HASO LIFT 272 wavefront sensor

+ WAVEVIEW metrology software with 150 functions included
+ Extensions for PSF, MTF and Strehl ratio
+ Optional SDK for interfacing with any custom system
+ WAVETUNE Adaptive Optics software
+ Extensions for AO applications
+ Optional SDK for interfacing with any custom system
+ Windows10 compatible

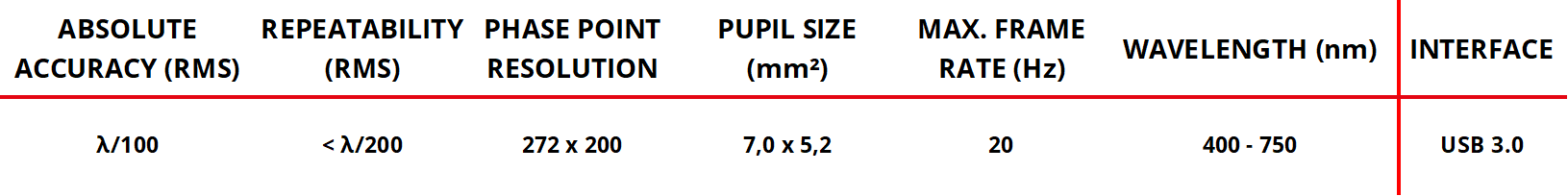

HASO-LIFT-272-wavefront-sensor-specs-table-2203
