HASO HXR

Broadband Hard X-Ray Wavefront Sensor

Hard X-Ray Wavefront Sensor

HASO HXR

Broadband Hard X-Ray Wavefront Sensor

The HASO HXR provides live measurement of the optical quality of your beamline at strategic positions such as after the monochromator, after an optics or a sample. Fluctuations of the position of a focal point can also be characterized. Check out the HASOs Table to see our Full HASO SERIES, compare specs and choose what fits your requirements !!

Add to pre-quote

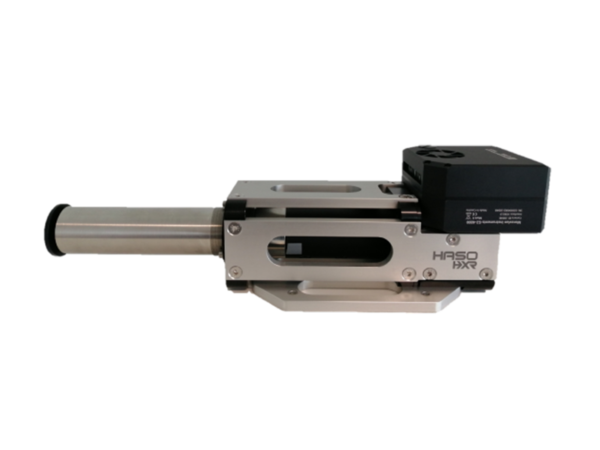

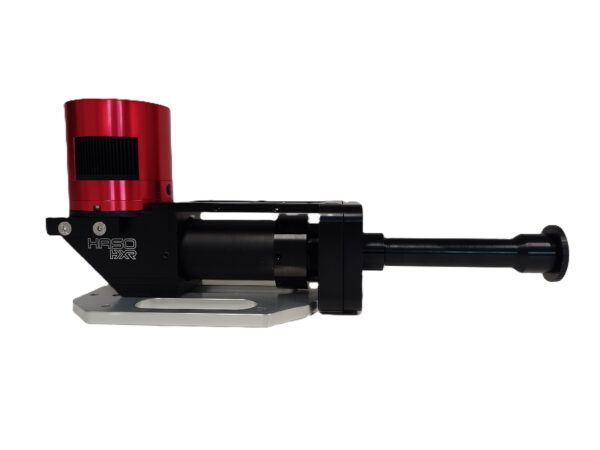

HASO HXR Wavefront sensor

The HASO HXR Wavefront Sensor offers live, single-short wavefront measurement with high resolution, dynamic range, and accuracy for beamline characterization and alignment. A perfect tool for synchrotron or X-FEL beamline scientists.

The HASO HXR facilitates live beamline alignment at wavelength. It can be used to automatically align a focusing optics such as a Kirkpatrick-Baez system or toroidal mirrors, and control active optics for optimizing the focal spot.

HASO HXR is BEST FOR

+ Source characterization
+ Real-time alignment of optical systems, e.g., KB, toroidal, etc.
+ Phase imaging of biological material, nanoparticles, archeological artifacts
+ Precise driving of X-Ray active optics



Software

WAVEVIEW (included) is the most advanced wavefront measurement and analysis software including more than 150 features and tools optimized for a wide range of highly demanding applications.
+ Extensions for PSF, MTF, Strehl ratio, M-Squared parameter and Advanced Zernike (annular or elliptical)
+ Windows 11 and 10 compatible
WAVETUNE (optional) is a unique software that seamlessly combines wavefront measurement and correction features with extensive diagnostics.
It is perfectly adapted to our HASO and LIFT wavefront sensors, ILAO STAR, MIRAO and mu-DM deformable mirrors, as well as to a wide range of third-party phase correctors from the market.
WAVEKIT (optional) is a SDK (Software Development Kit) in C/C++, LabVIEW and Python, providing the basis blocks on which one can build a fully customized software for specific HASO based applications or WaveView data processing routines.
+ include documentation and examples
+ available on request.

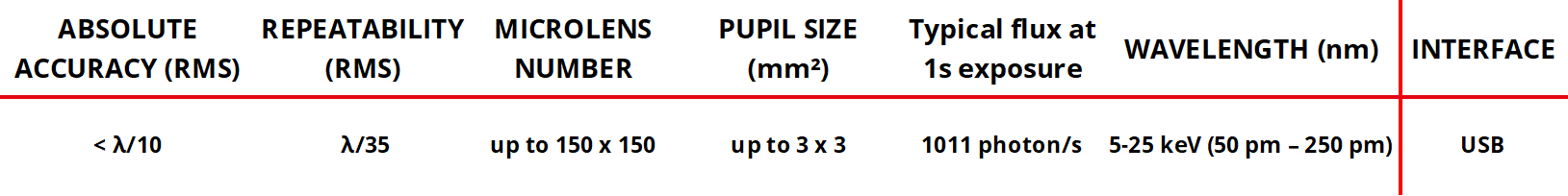

HASO HXR Wavefront sensor DATASHEET
Wavefront sensors BROCHURE
