MIRAO 52E

Optimized for closed-loop operations

MIRAO 52E

Optimized for closed-loop operations

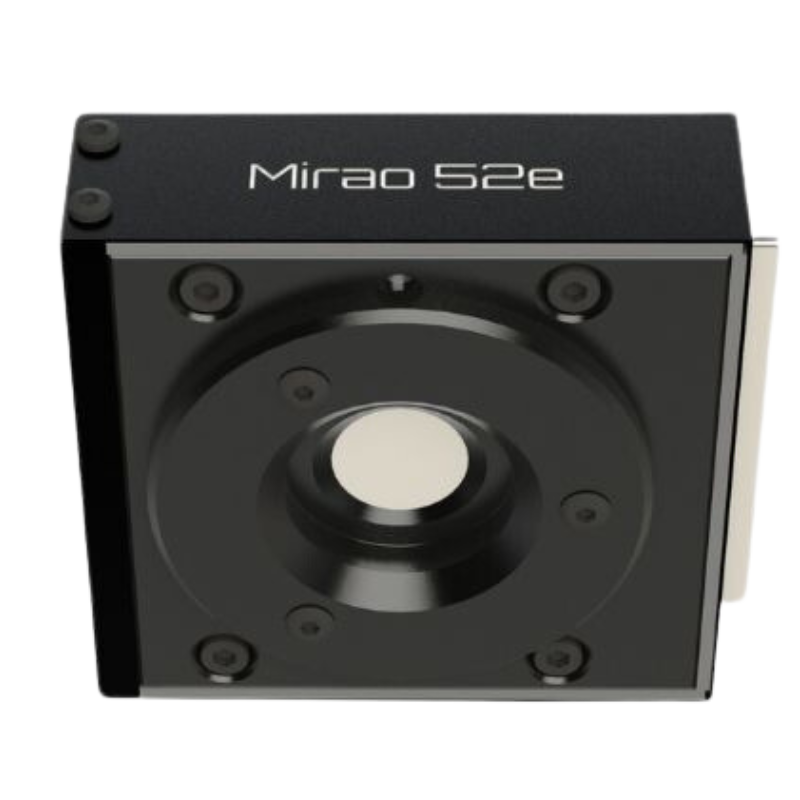

Mirao 52E Deformable Mirror incorporates a unique technology that uses 52 electromagnetic actuators, enough to precisely correct up to 6th order Zernike modes.
It also provides an exceptional 50μm PV deformation amplitude, which makes this mirror especially useful in various bio-imaging, microscopy and ophthalmology applications where large-amplitude aberrations must be corrected.

Optimized for closed-loop operations

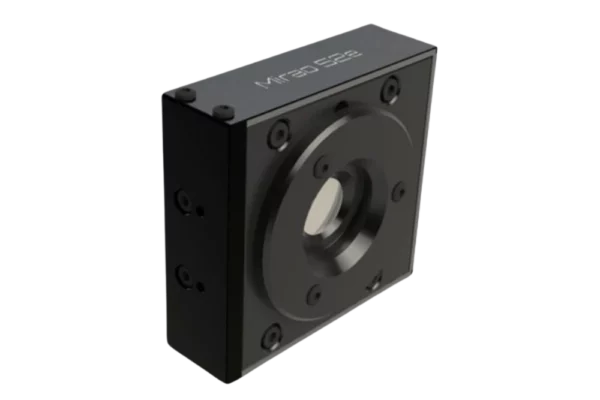

The Electromagnatic deformable mirror Mirao 52E offers an exceptionally large stroke and high optical quality combined with low power consumption. It incorporates 52 electromagnetic actuators and provides an exceptional 50 µm PV deformation amplitude.

Explore our set of Deformable mirrors. Mirao’s electronic unit connects to the PC via USB port. There is also a trigger output available to facilitate synchronization with other devices via TTL signal.


Key Specs

+ ±50 µm stroke (tilt p/v)
+ 15 mm pupil with 52 actuators
+ Exceptional surface quality (less than 10 nm rms active flat)
+ Virtually no hysteresis (less than 2%) – Near perfect linearity (over 95%)
+ Compatible with open-loop control – USB2 connectivity

Best For

+ Bio-imaging
+ Ophthalmology
+ Microscopy
+ Beam shaping



SOFTWARE

WAVEVIEW (included) is the most advanced wavefront measurement and analysis software including more than 150 features and tools optimized for a wide range of highly demanding applications.
+ Extensions for PSF, MTF, Strehl ratio, M-Squared parameter and Advanced Zernike (annular or elliptical)
+ Windows 11 and 10 compatible

WAVETUNE (optional) is a unique software that seamlessly combines wavefront measurement and correction features with extensive diagnostics.
It is perfectly adapted to our HASO and LIFT wavefront sensors, ILAO STAR, MIRAO and mu-DM deformable mirrors, as well as to a wide range of third-party phase correctors from the market.

WAVEKIT (optional) is a SDK (Software Development Kit) in C/C++, LabVIEW and Python, providing the basis blocks on which one can build a fully customized software for specific HASO based applications or WaveView data processing routines.
+ include documentation and examples
+ available on request.

Description

Specifications

Number of Actuators 52
Surface Quality <10 nm RMS
Coating Protected silver
Linearity > 95%
Interface USB 2.0
Hysteresis < 2%
Effective diameter 15 mm
