ILAO STAR

ELI-NP’s choice to reach 10PW

ILAO STAR

ELI-NP’s choice to reach 10PW



ILAO STAR is the first stepper-motor deformable mirror dedicated to ultra-intense lasers that can perform wavefront correction during full-power operation. Its customizable design will perfectly fit any laser characteristics.

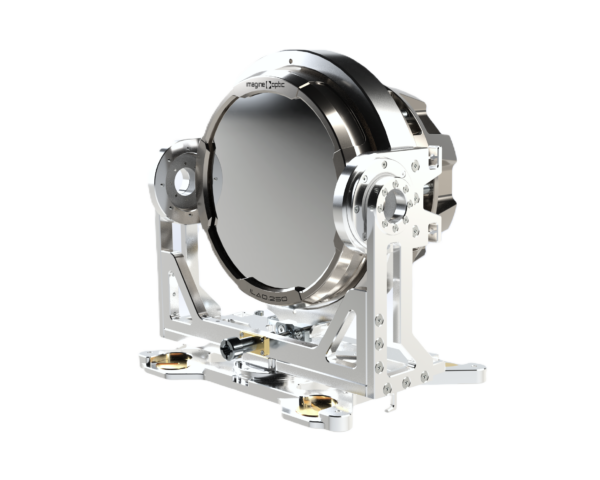

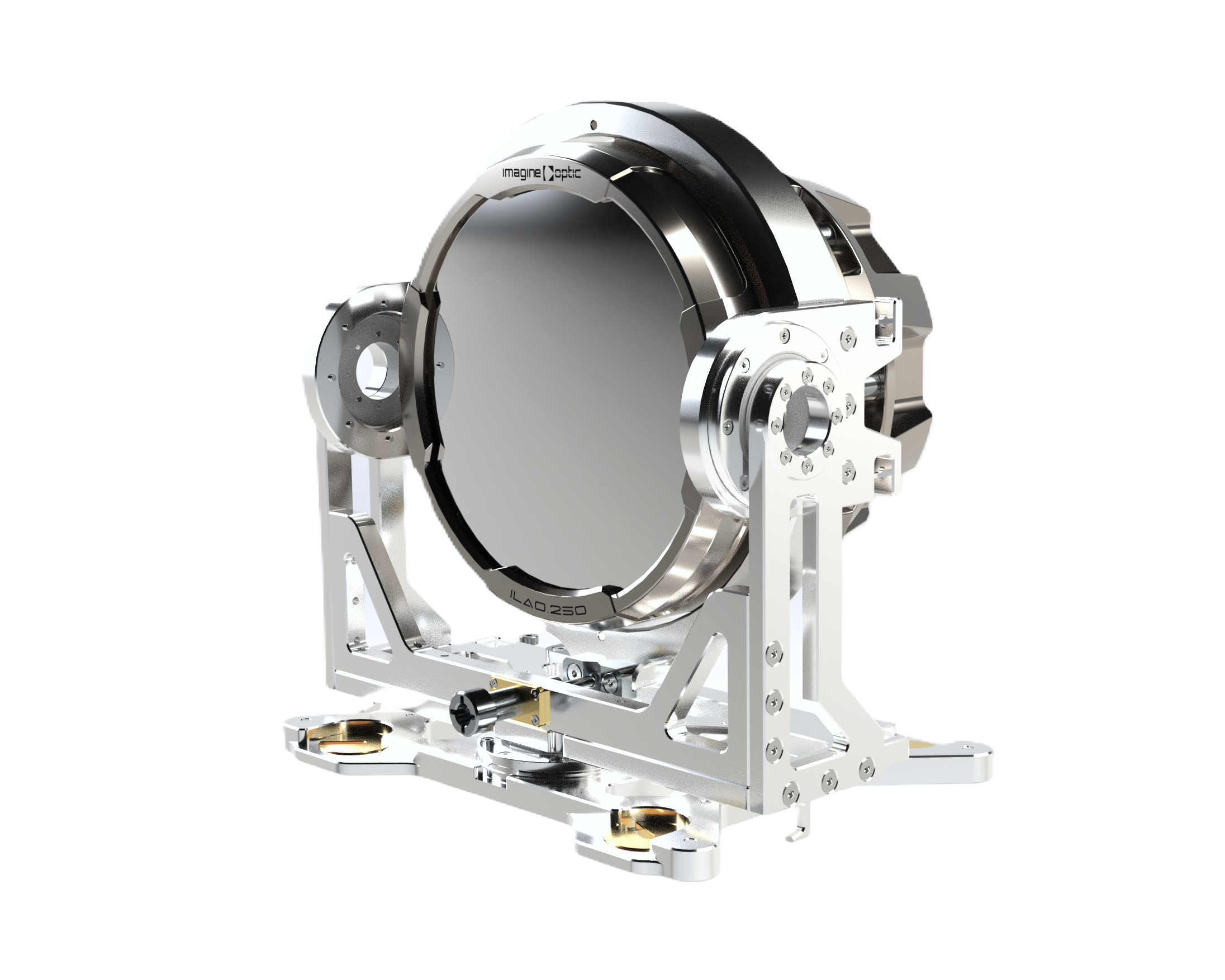

ILAO STAR Deformable mirror

ILAO STAR  Deformable Mirrors is the most advanced mechanical actuator-based deformable mirror dedicated to ultra-intense
lasers. It combines already proven principles from the previous generations of mechanical deformable mirrors with innovative developments fostered by tens of customers.


Features

+ Mirror shape maintained even without electrical power
+ Excellent optical quality with active flat better than 10 nm rms and minimal print-through effect
+ Perfectly adapted to a beam diameters ranging from 20 to 500 mm
+ Dielectric, metallic, or hybrid coating available
+ Compatible with WaveTune software and every HASO wavefront sensors
+ Optional SDK in C, Python, Labview

Best For

+ Correcting aberrations in full-power mode
+ Focal spot correction
+ Wavefront precompensation
+ Particle acceleration
+ High harmonic generation


KEY SPECS

+ Optical quality enabling Strehl Ratio > 0,9
+ Closed-loop processing frequency ≥ 10Hz
+ Very low hysteresis (less than 0.5%)
+ Very high correction capability
+ No backlash compensation needed
+ Completely customized to laser’s parameters
+ Easy maintenance for actuator or substrate replacement
+ Any angle of incidence ≤ 45°

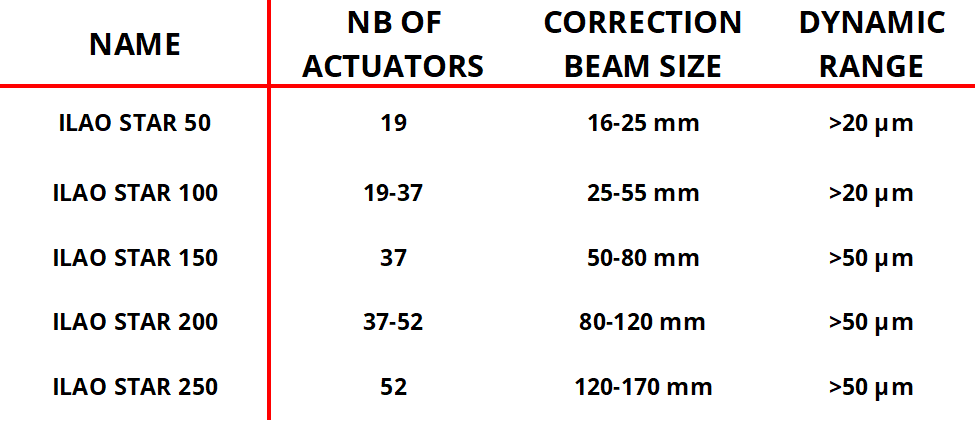

Product

Actuators

Correction Beam Size

Dynamic Range

ILAO STAR 50 19 16-25 mm >20 µm
ILAO STAR 100 19-37 25-55 mm >20 µm
ILAO STAR 150 37 50-80 mm >50 µm
ILAO STAR 200 37-52 80-120 mm >50 µm
ILAO STAR 250 52 120-170 mm >50 µm
